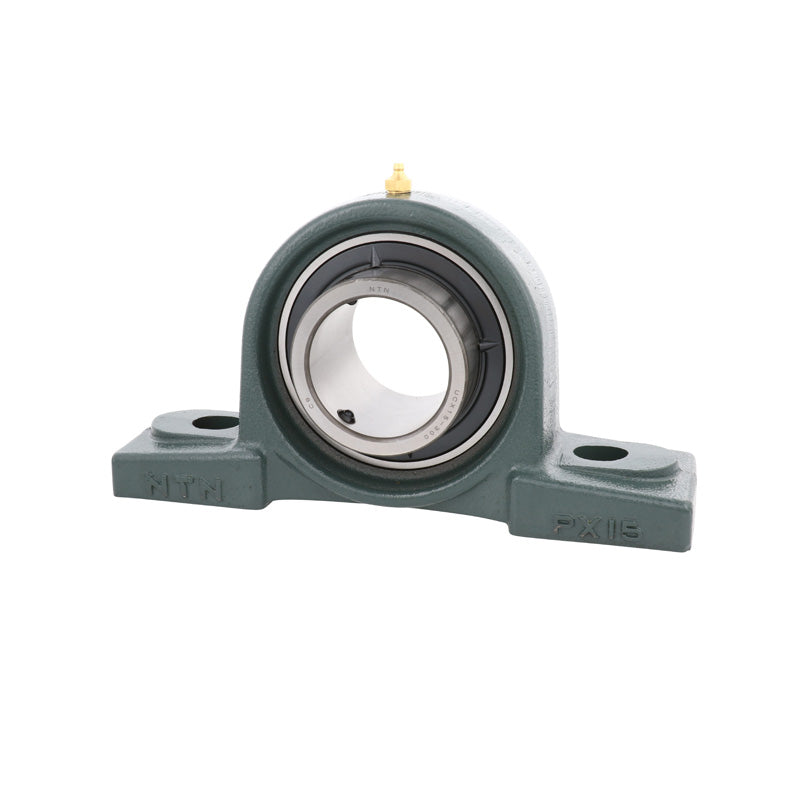

NTN UCPX17D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
NTN UCPX17D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
€310,97
ex VAT
Regular price
Sale price
€310,97
ex VAT
In stock
Price Break
3+
€263,45
4+
€252,80
9+
€247,48
19+
€239,50
49+
€234,18
99+
€220,87
499+
€186,28
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCPX
- Bolt Hole Centres:
- 283mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| H | 101.6mm |
| L | 381mm |
| J | 283mm |
| A | 102mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 200mm |
| L<sub>1</sub> | 110mm |
| B | 96mm |
| S | 39.7mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 15 kg |
