SKU: UCS.202-10

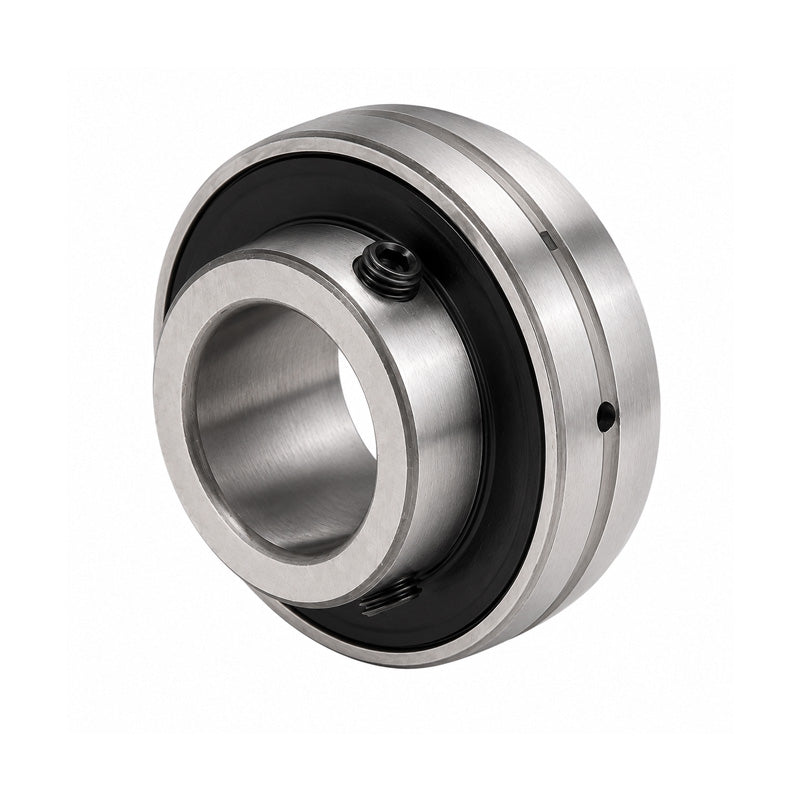

UCS202-10 Imperial Spherical Bearing Insert with 5/8 inch Bore 40mm Outside Dia
UCS202-10 Imperial Spherical Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
€8,33
ex VAT
Regular price
Sale price
€8,33
ex VAT
Equivalent to: RB202-10
In stock
Price Break
3+
€6,35
4+
€5,99
9+
€5,92
19+
€5,85
49+
€5,78
99+
€5,70
499+
€5,35
999+
€5,28
1999+
€5,20
2999+
€5,13
4999+
€4,99
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: RB202-10
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| N | 11.5mm |
| M | 15.9mm |
| G | 4mm |
| ds | M5x0.8 |
| Dynamic Load | 9600 N |
| Static Load | 4600 N |
| Weight | 0.11 kg |
