SKU: UCSP206N-SNR

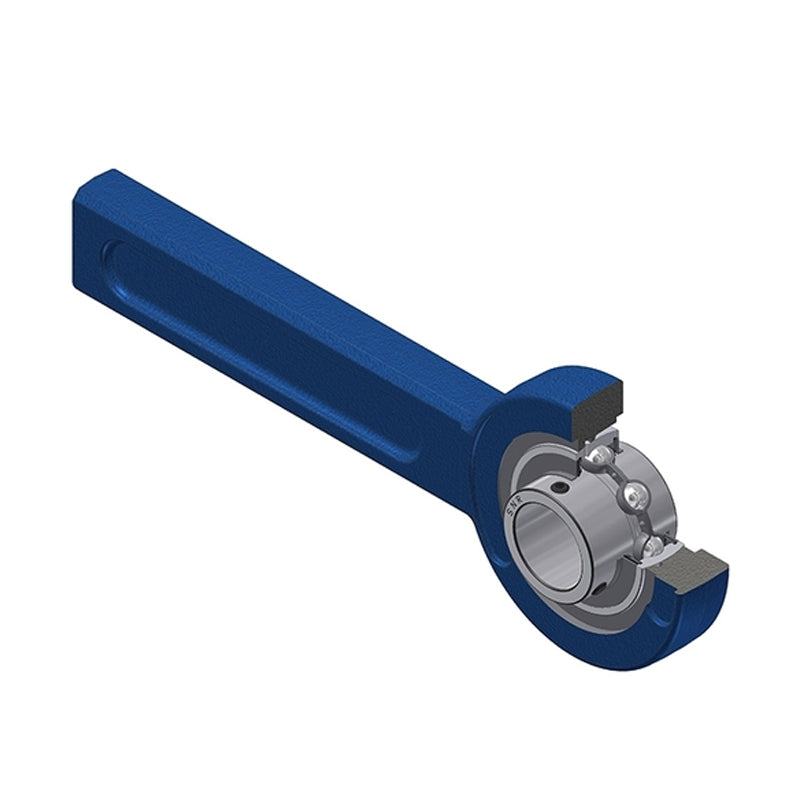

SNR UCSP206N Metric Cast Iron Tensioner Unit with 30mm Bore Insert - Allow 2-3 Days

SNR UCSP206N Metric Cast Iron Tensioner Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price €103,62 ex VAT
Regular price Sale price €103,62 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,78
4+ €84,24
9+ €82,46
19+ €79,80
49+ €78,03
99+ €73,60
499+ €62,07
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

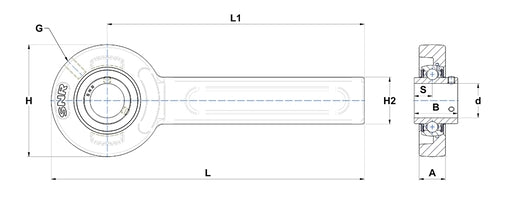

--- Dimensions
Shaft diameter 30mm
A 21mm
B 38.1mm
H 98mm
H2 41mm
L 274mm
L1 225mm
S 15.9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.93 kg
