SKU: UCT311

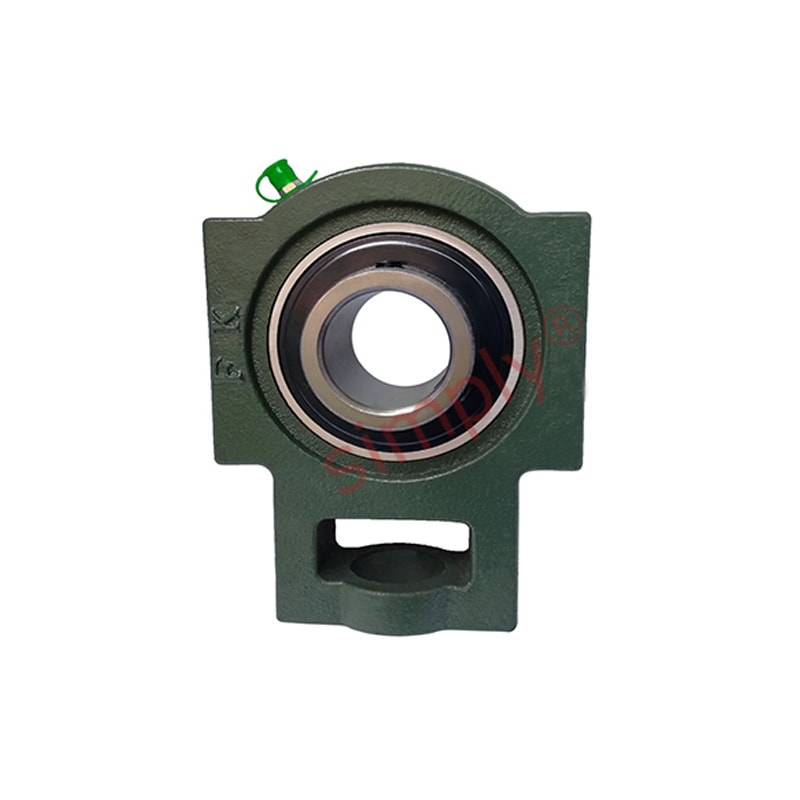

UCT311 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
UCT311 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
Regular price
€65,36
ex VAT
Regular price
Sale price
€65,36
ex VAT
In stock
Price Break
3+
€49,78
4+
€46,98
9+
€46,42
19+
€45,86
49+
€45,30
99+
€44,74
499+
€41,95
999+
€41,39
1999+
€40,83
2999+
€40,27
4999+
€39,15
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| d | 55mm |
|---|---|
| o | 29mm |
| g | 23mm |
| p | 105mm |
| q | 66mm |
| s | 39mm |
| b | 115mm |
| k | 22mm |
| e | 150mm |
| a | 163mm |
| w | 207mm |
| j | 66mm |
| l | 44mm |
| h | 127mm |
| B | 66mm |
| n | 25mm |
| Bearing no | UC311 |
| Housing no | T311 |
| Weight | 6.2 kg |
