SKU: UCT313D1-NTN

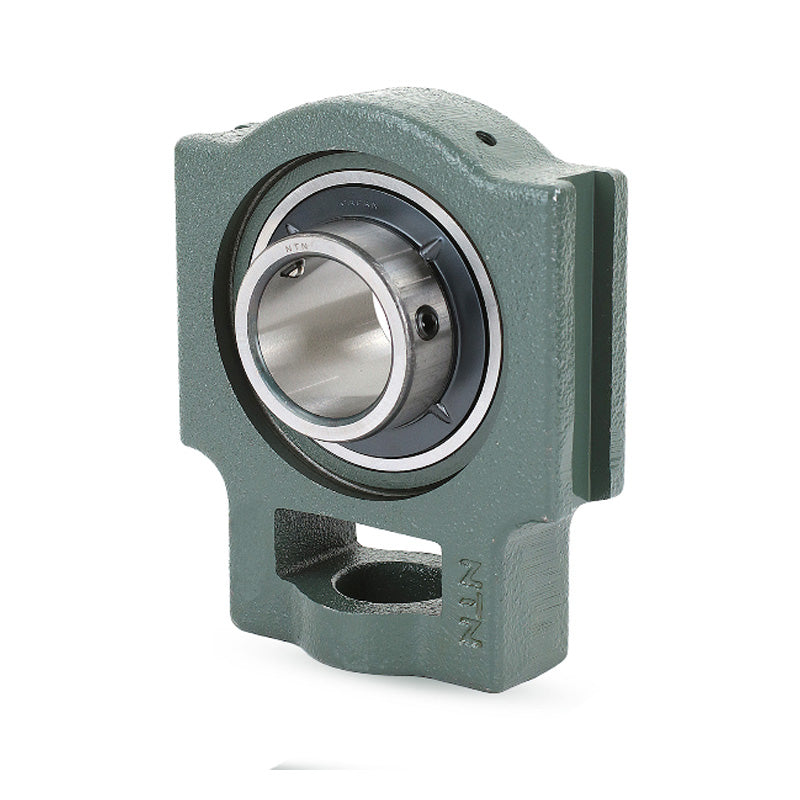

NTN UCT313D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT313D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit - Allow 2-3 Days
Regular price €233,20 ex VAT
Regular price Sale price €233,20 ex VAT
Sale Sold out

In stock

Price Break
3+ €197,56
4+ €189,58
9+ €185,59
19+ €179,60
49+ €175,61
99+ €165,63
499+ €139,69
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
N<sub>1</sub> 32mm
L<sub>2</sub> 27mm
H<sub>2</sub> 116mm
N<sub>2</sub> 70mm
N 43mm
L<sub>3</sub> 134mm
A<sub>1</sub> 26mm
H<sub>1</sub> 170mm
H 190mm
L 238mm
A<sub>2</sub> 50mm
A 80mm
r 92mm
L<sub>1</sub> 146mm
B 75mm
S 30mm
--- Load rating
Dynamic load C<sub>r</sub> 103 kN
Static load C<sub>0r</sub> 60 kN
Fatigue load limit C<sub>u</sub> 4.6 kN
--- Unit information
Mass 9.3 kg
