SKU: UCT316

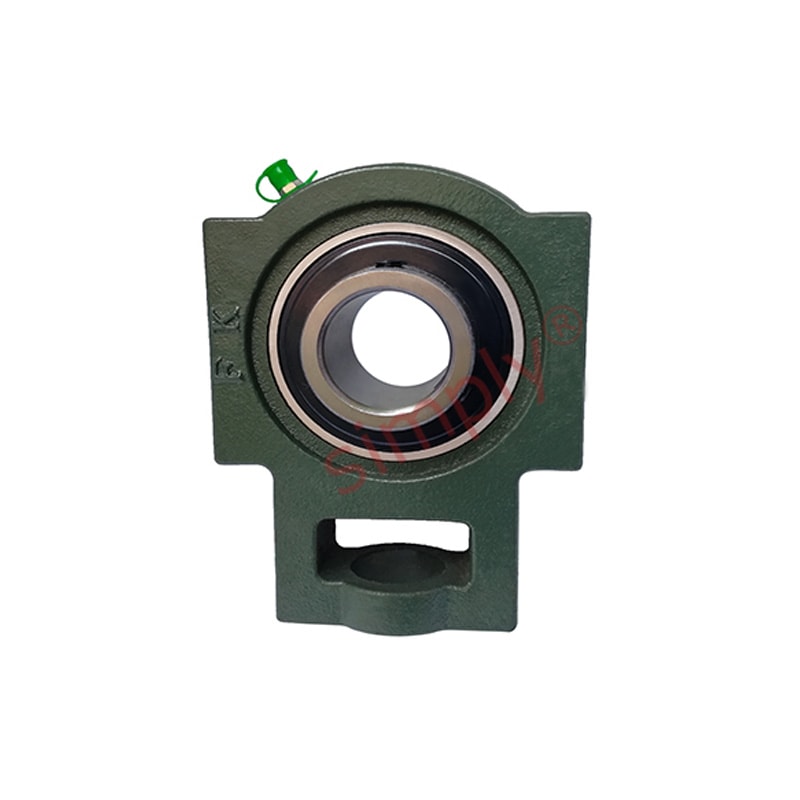

UCT316 Metric Cast Iron Take Up Unit Housing with 80mm Bore Insert
UCT316 Metric Cast Iron Take Up Unit Housing with 80mm Bore Insert
Regular price
€218,90
ex VAT
Regular price
Sale price
€218,90
ex VAT
In stock
Price Break
10+
€194,82
19+
€183,88
29+
€181,69
39+
€179,50
49+
€177,31
74+
€175,12
99+
€164,18
199+
€161,99
249+
€159,80
499+
€157,61
999+
€153,23
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- UCT
Technical
Technical
| d | 80mm |
|---|---|
| o | 42mm |
| g | 30mm |
| p | 150mm |
| q | 98mm |
| s | 53mm |
| b | 160mm |
| k | 30mm |
| e | 204mm |
| a | 230mm |
| w | 282mm |
| j | 102mm |
| l | 60mm |
| h | 174mm |
| B | 86mm |
| n | 34mm |
| Bearing no | UC316 |
| Housing no | T316 |
| Weight | 15.8 kg |
