SKU: UCTX07

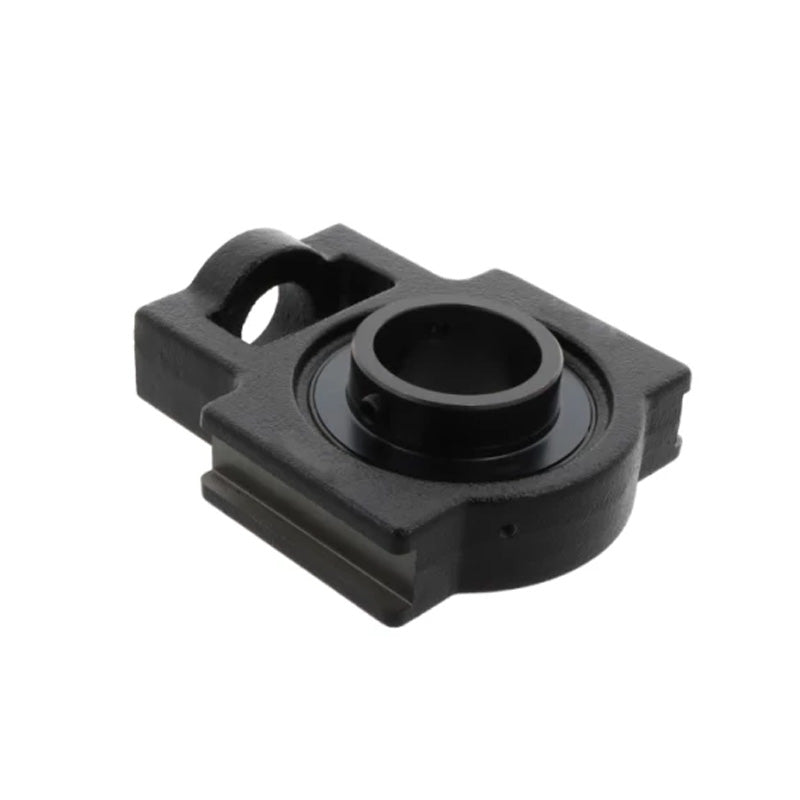

UCTX07 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
UCTX07 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
Regular price
€33,04
ex VAT
Regular price
Sale price
€33,04
ex VAT
In stock
Price Break
3+
€25,16
4+
€23,75
9+
€23,47
19+
€23,19
49+
€22,90
99+
€22,62
499+
€21,21
999+
€20,92
1999+
€20,64
2999+
€20,36
4999+
€19,79
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCTX
Technical
Technical
| d | 35mm |
|---|---|
| o | 19mm |
| g | 17mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| w | 144mm |
| j | 36mm |
| l | 49mm |
| h | 88mm |
| B | 49.2mm |
| n | 19mm |
| Bearing no | UCX07 |
| Housing no | TX07 |
| Weight | 2.6 kg |
