SKU: UCTX11

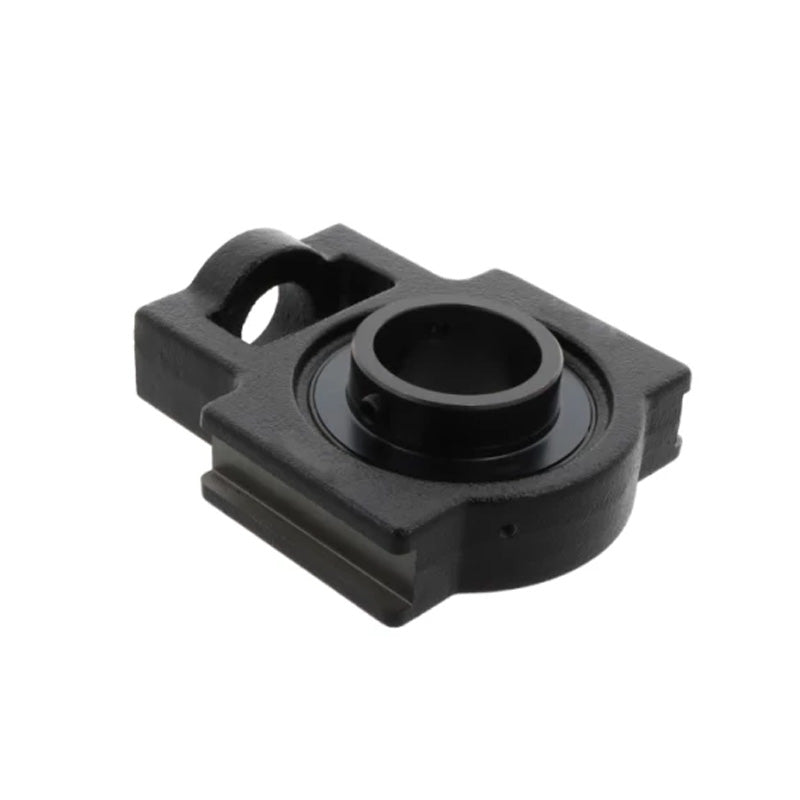

UCTX11 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
UCTX11 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert
Regular price
€57,14
ex VAT
Regular price
Sale price
€57,14
ex VAT
In stock
Price Break
3+
€43,52
4+
€41,08
9+
€40,59
19+
€40,10
49+
€39,61
99+
€39,12
499+
€36,68
999+
€36,19
1999+
€35,70
2999+
€35,21
4999+
€34,23
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCTX
Technical
Technical
| d | 55mm |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 102mm |
| k | 22mm |
| e | 130mm |
| a | 146mm |
| w | 194mm |
| j | 44mm |
| l | 64mm |
| h | 119mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UCX11 |
| Housing no | TX11 |
| Weight | 4.9 kg |
