SKU: UCTX15D1-NTN

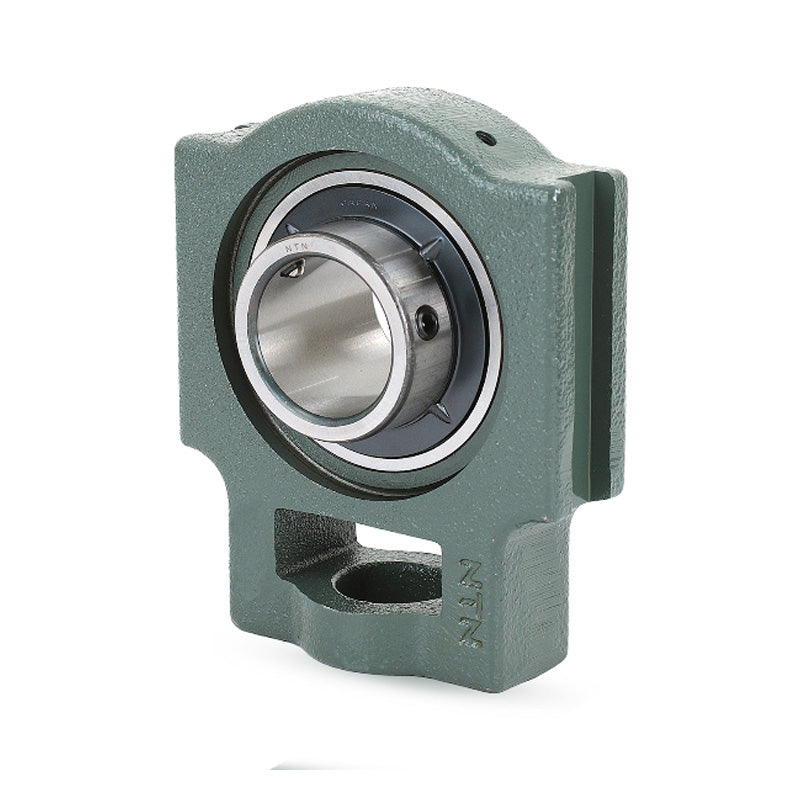

NTN UCTX15D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days

NTN UCTX15D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
Regular price €233,13 ex VAT
Regular price Sale price €233,13 ex VAT
Sale Sold out

In stock

Price Break
3+ €197,51
4+ €189,53
9+ €185,54
19+ €179,55
49+ €175,56
99+ €165,59
499+ €139,65
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 75mm
N<sub>1</sub> 32mm
L<sub>2</sub> 23mm
H<sub>2</sub> 111mm
N<sub>2</sub> 70mm
N 41mm
L<sub>3</sub> 121mm
A<sub>1</sub> 28mm
H<sub>1</sub> 165mm
H 184mm
L 235mm
A<sub>2</sub> 48mm
A 70mm
r 95mm
L<sub>1</sub> 140mm
B 82.6mm
S 33.3mm
--- Load rating
Dynamic load C<sub>r</sub> 80.5 kN
Static load C<sub>0r</sub> 53 kN
Fatigue load limit C<sub>u</sub> 3.95 kN
--- Unit information
Mass 8.3 kg
