SKU: UCX.06

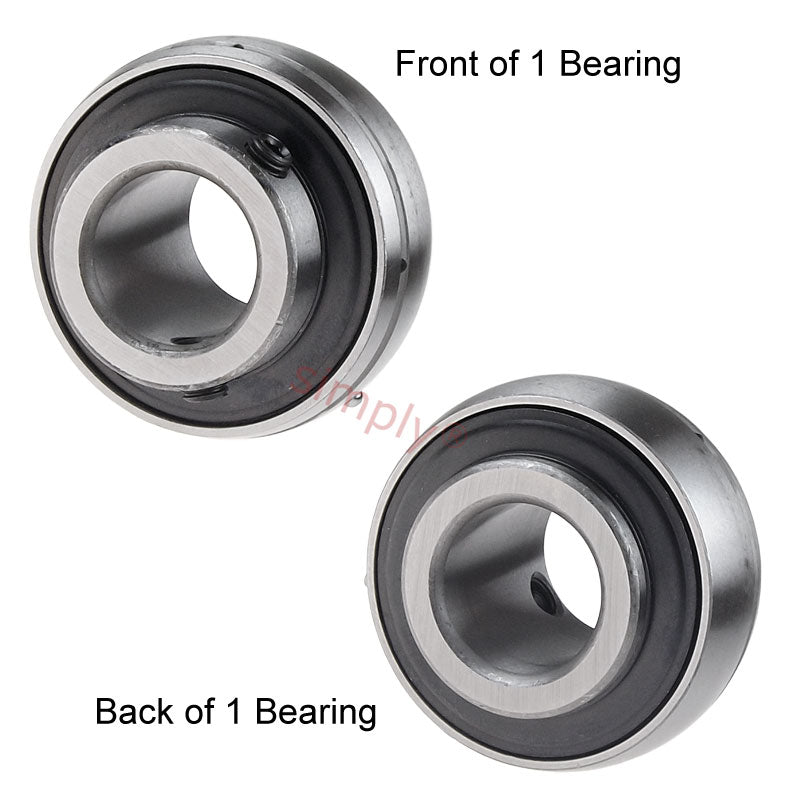

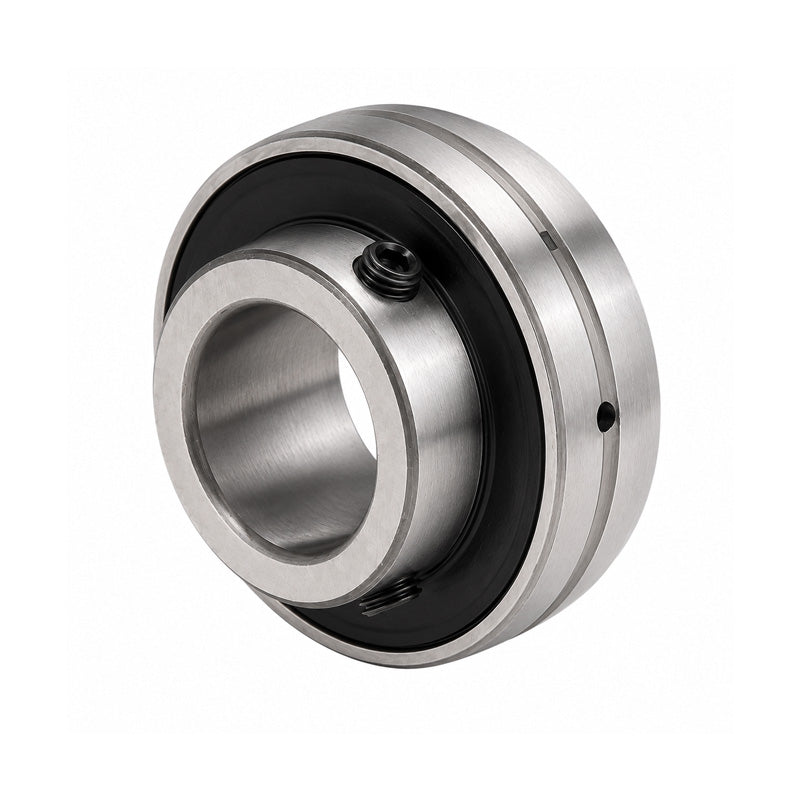

UCX06 Metric Bearing Insert with 30mm Bore 72mm Outside Dia

Name: UCX06 Metric Bearing Insert with 30mm Bore 72mm Outside Dia
Brand: Gen
SKU: UCX.06
Price: 15.71 EUR
Availability: InStock

€15,71 ex VAT

Sale Sold out

Equivalent to: 1035-30G

In stock

Price Break

3+ €11,96

4+ €11,29

9+ €11,16

19+ €11,02

49+ €10,89

99+ €10,75

499+ €10,08

999+ €9,95

1999+ €9,81

2999+ €9,68

4999+ €9,41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Equivalent: 1035-30G

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 72mm
Style:: UCX

Technical

d	30mm
D	72mm
Bi	42.9mm
Be	20mm
n	17.5mm
m	25.4mm
G	6.5mm
Grub screw	M8x1
Weight	0.58 kg
Dynamic load	2010 kgf
Static load	1390 kgf
Rec max speed	4500 rpm
