SKU: UCX.09

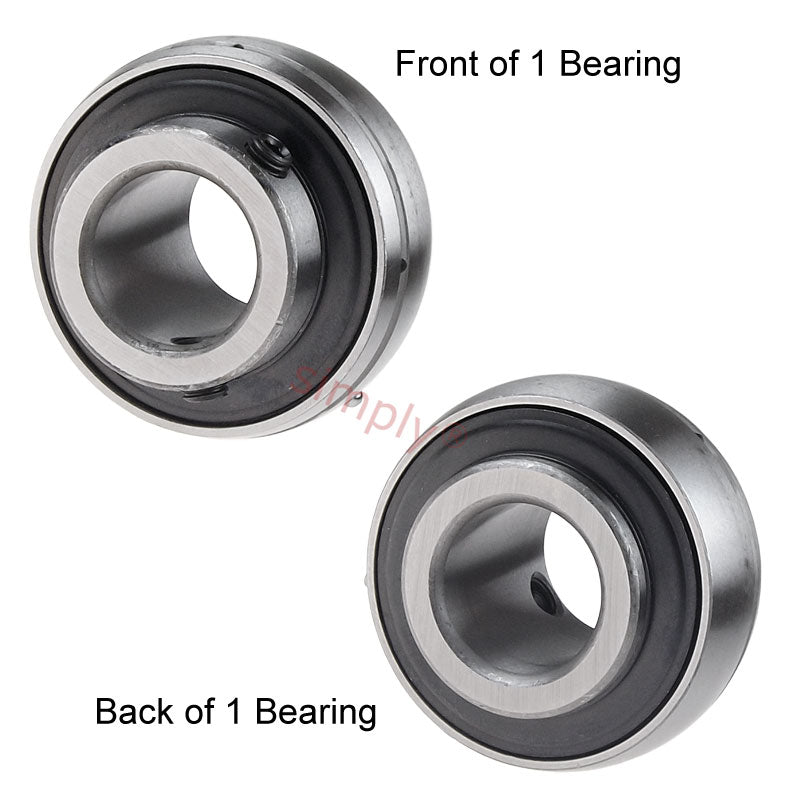

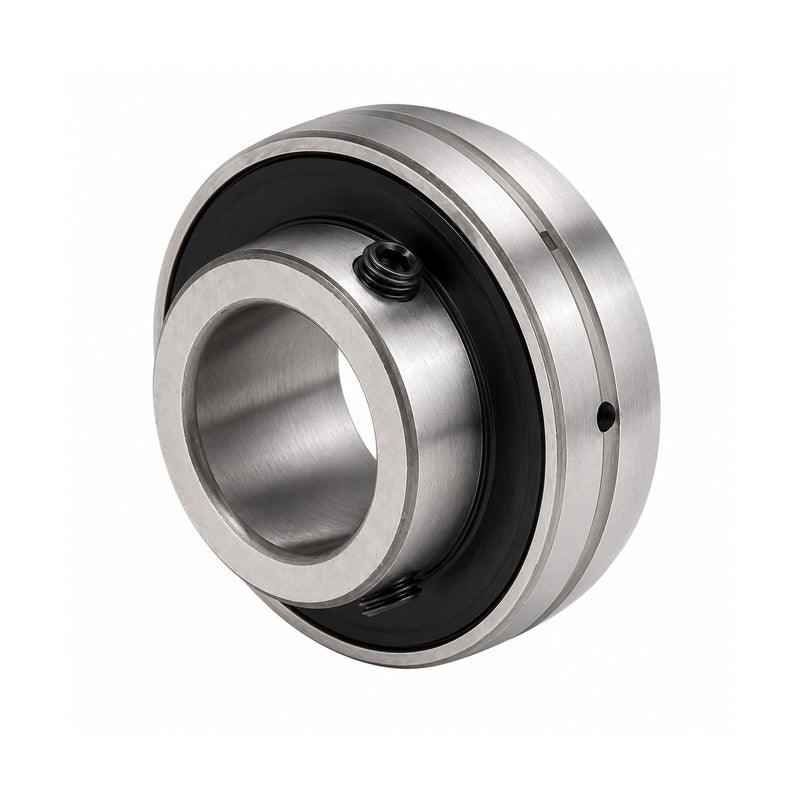

UCX09 Metric Bearing Insert with 45mm Bore 90mm Outside Dia

Name: UCX09 Metric Bearing Insert with 45mm Bore 90mm Outside Dia
Brand: Gen
SKU: UCX.09
Price: 26.64 EUR
Availability: InStock

€26,64 ex VAT

Sale Sold out

Equivalent to: 1050-45G

In stock

Price Break

3+ €20,29

4+ €19,15

9+ €18,92

19+ €18,69

49+ €18,47

99+ €18,24

499+ €17,10

999+ €16,87

1999+ €16,64

2999+ €16,41

4999+ €15,96

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Equivalent: 1050-45G

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 45mm
Outside Diameter:: 90mm
Style:: UCX

Technical

d	45mm
D	90mm
Bi	51.6mm
Be	24mm
n	19mm
m	32.6mm
G	10mm
Grub screw	M10x1
Weight	0.97 kg
Dynamic load	2750 kgf
Static load	2020 kgf
Rec max speed	3400 rpm
