SKU: UCX.10-32

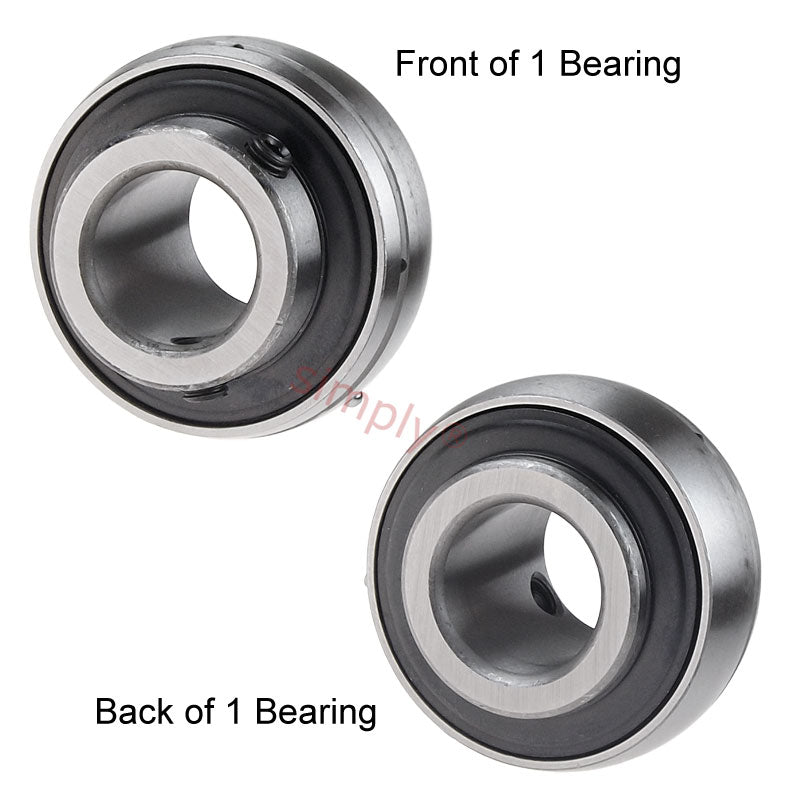

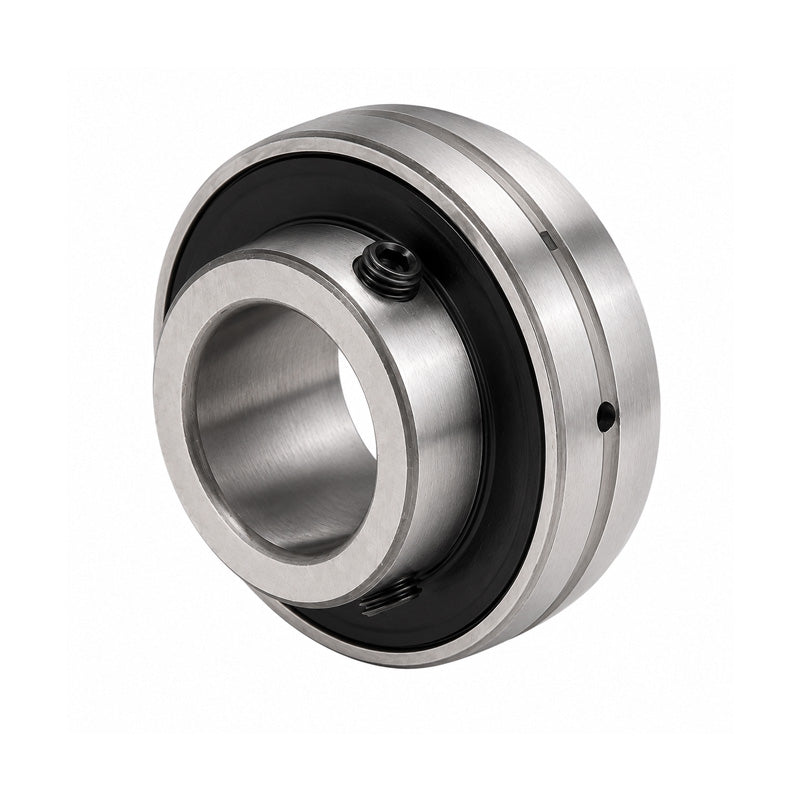

UCX10-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia

Name: UCX10-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Brand: Gen
SKU: UCX.10-32
Price: 32.87 EUR
Availability: InStock

€32,87 ex VAT

Sale Sold out

In stock

Price Break

3+ €25,04

4+ €23,63

9+ €23,35

19+ €23,07

49+ €22,79

99+ €22,51

499+ €21,10

999+ €20,82

1999+ €20,54

2999+ €20,25

4999+ €19,69

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 50.8mm = 2 inch
Outside Diameter:: 100mm
Style:: UCX

Technical

d	2 inch
D	100mm
Bi	55.6mm
Be	25mm
n	22.2mm
m	33.4mm
G	10mm
Grub screw	3/8-24-unf
Weight	1.29 kg
Dynamic load	3400 kgf
Static load	2550 kgf
