SKU: UCX.11

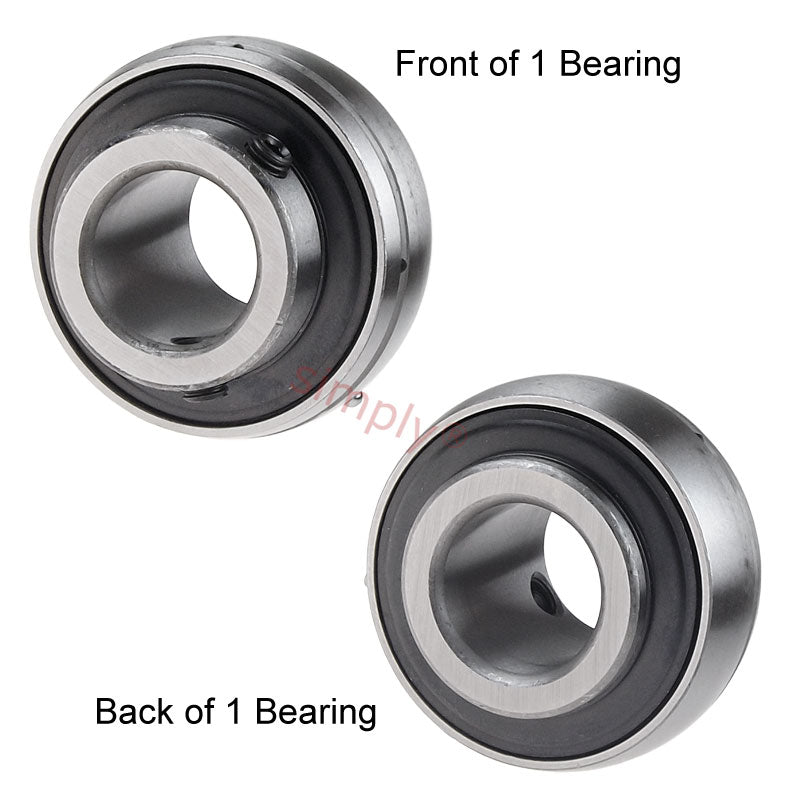

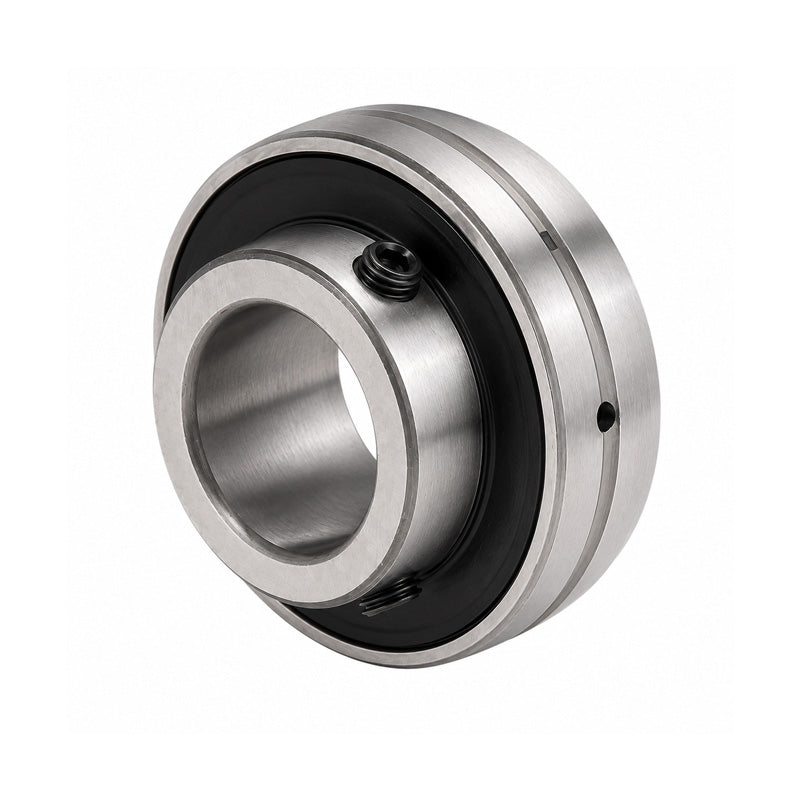

UCX11 Metric Bearing Insert with 55mm Bore 110mm Outside Dia

Name: UCX11 Metric Bearing Insert with 55mm Bore 110mm Outside Dia
Brand: Gen
SKU: UCX.11
Price: 34.85 EUR
Availability: InStock

€34,85 ex VAT

Sale Sold out

Equivalent to: 1060-55G

In stock

Price Break

3+ €26,54

4+ €25,05

9+ €24,75

19+ €24,46

49+ €24,16

99+ €23,86

499+ €22,37

999+ €22,07

1999+ €21,77

2999+ €21,47

4999+ €20,88

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Equivalent: 1060-55G

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 55mm
Outside Diameter:: 110mm
Style:: UCX

Technical

d	55mm
D	110mm
Bi	65.1mm
Be	27mm
n	25.4mm
m	39.7mm
G	10mm
Grub screw	65.1mm
Weight	1.8 kg
Dynamic load	4100 kgf
Static load	3150 kgf
Rec max speed	2800 rpm
