SKU: UCX.15-48

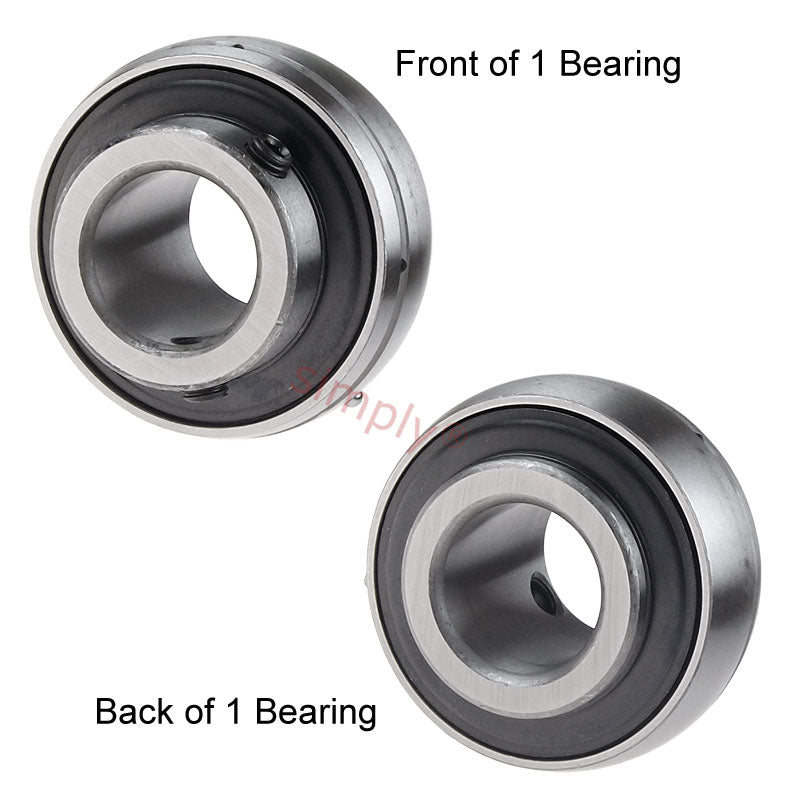

UCX15-48 Imperial Bearing Insert with 3 inch Bore 140mm Outside Dia

Name: UCX15-48 Imperial Bearing Insert with 3 inch Bore 140mm Outside Dia
Brand: Gen
SKU: UCX.15-48
Price: 87.42 EUR
Availability: InStock

€87,42 ex VAT

Sale Sold out

In stock

Price Break

3+ €66,58

4+ €62,84

9+ €62,09

19+ €61,34

49+ €60,59

99+ €59,85

499+ €56,11

999+ €55,36

1999+ €54,61

2999+ €53,86

4999+ €52,36

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 76.2mm = 3 inch
Outside Diameter:: 140mm
Style:: UCX

Technical

d	3 inch
D	140mm
Bi	82.6mm
Be	32mm
n	33.3mm
m	49.3mm
G	14mm
Grub screw	7/16-20-unf
Weight	3.41 kg
Dynamic load	5700 kgf
Static load	4550 kgf
