SKU: UELP310D1W3-NTN

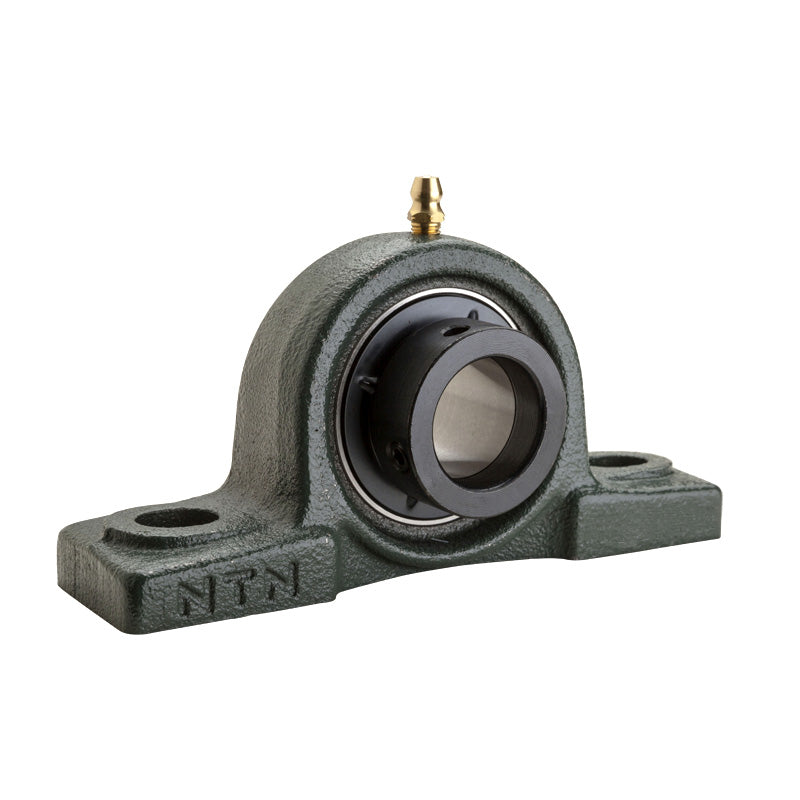

NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€132,63
ex VAT
Regular price
Sale price
€132,63
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
€131,30
10+
€126,00
20+
€123,35
50+
€119,37
100+
€116,71
500+
€110,08
1000+
€92,84
Couldn't load pickup availability
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 75mm |
| L | 275mm |
| J | 212mm |
| A | 75mm |
| N | 20mm |
| N<sub>1</sub> | 35mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 143mm |
| L<sub>1</sub> | 75mm |
| B<sub>1</sub> | 66.6mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 5.8 kg |
