SKU: UJSN45X22-MB

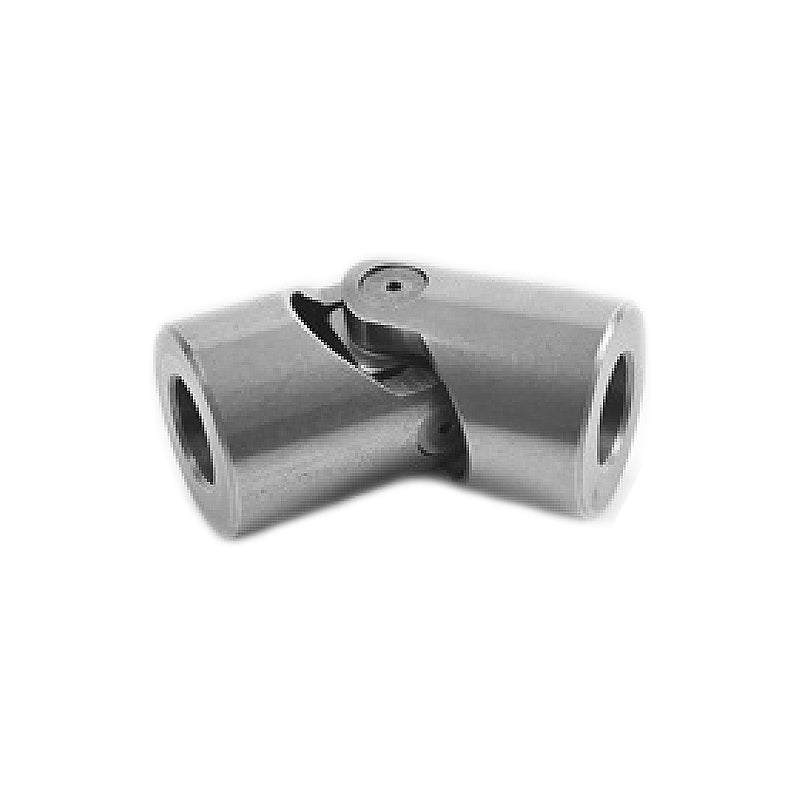

Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Regular price
€129,39
ex VAT
Regular price
Sale price
€129,39
ex VAT
In stock
Price Break
10+
€115,16
19+
€108,69
29+
€107,39
39+
€106,10
49+
€104,81
74+
€103,51
99+
€97,04
199+
€95,75
249+
€94,45
499+
€93,16
999+
€90,57
Couldn't load pickup availability
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 22mm
- Outside Diameter:
- 45mm
- Length:
- 95mm
- Style:
- UJSN
Technical
Technical

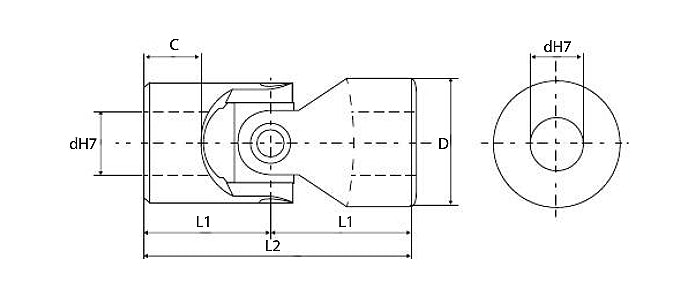

| Bore d H7 | 22mm |
|---|---|
| Diameter D | 45mm |
| Overall length L2 | 95mm |
| Pivot centre L1 | 47.5mm |
| Hub length C | 22mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.95 kg |
