SKU: UJSP42X20ST-MB

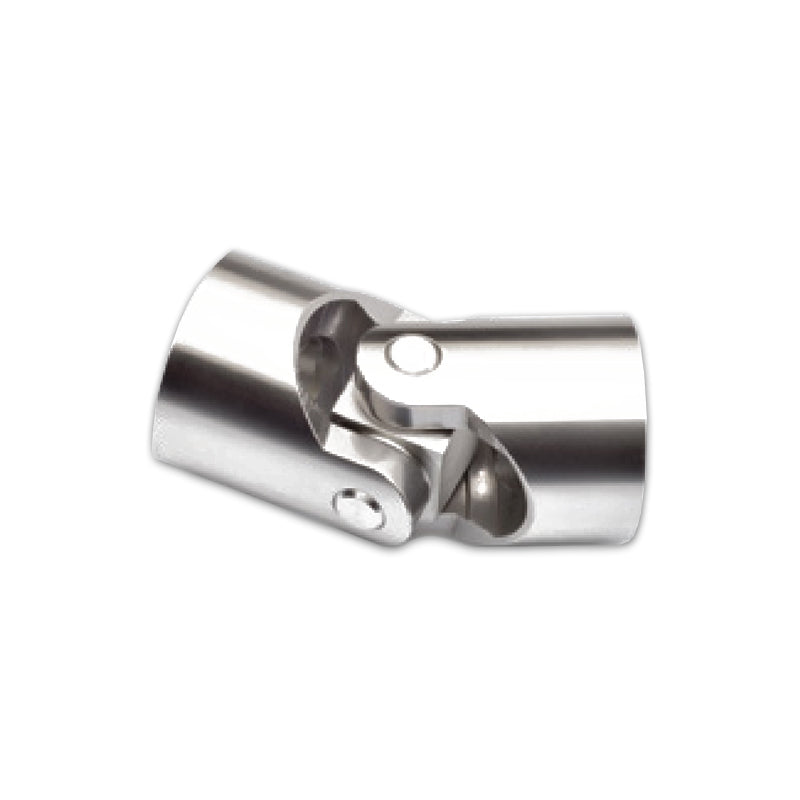

Branded UJSP42X20ST Stainless Steel 304 Universal Single Joint with Plain Bearing 20x42x82mm
Branded UJSP42X20ST Stainless Steel 304 Universal Single Joint with Plain Bearing 20x42x82mm
Regular price
€174,57
ex VAT
Regular price
Sale price
€174,57
ex VAT
In stock
Price Break
10+
€155,37
19+
€146,64
29+
€144,89
39+
€143,15
49+
€141,40
74+
€139,66
99+
€130,93
199+
€129,18
249+
€127,44
499+
€125,69
999+
€122,20
Couldn't load pickup availability
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Length:
- 82mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 20mm |
|---|---|
| Diameter D | 42mm |
| Overall length L2 | 82mm |
| Pivot centre L1 | 41mm |
| Hub length C | 18mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG3M42 |
| Weight KG | 0.6 kg |
