SKU: UKC207/HS2307

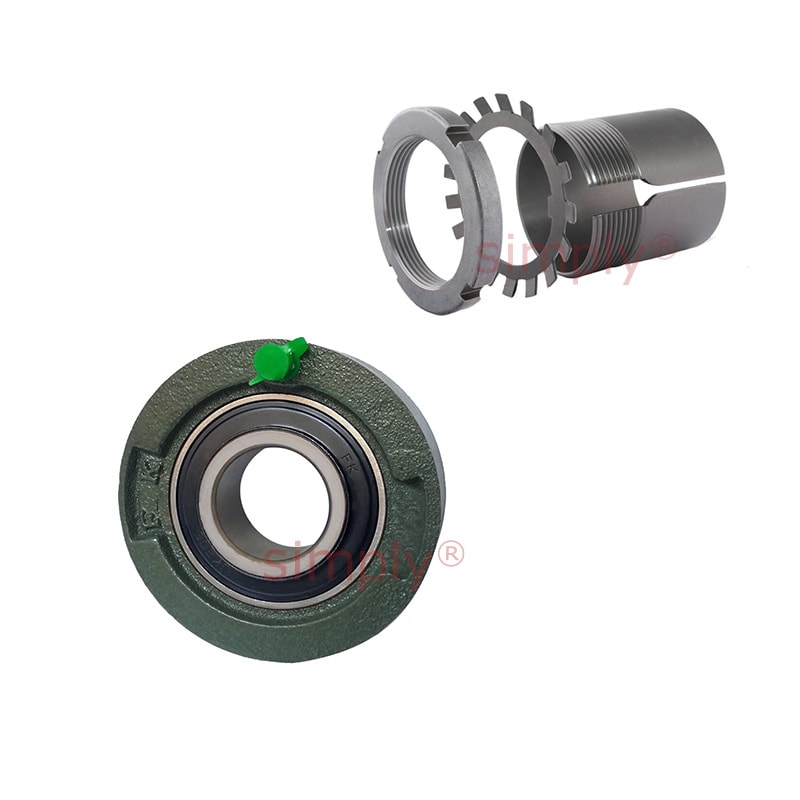

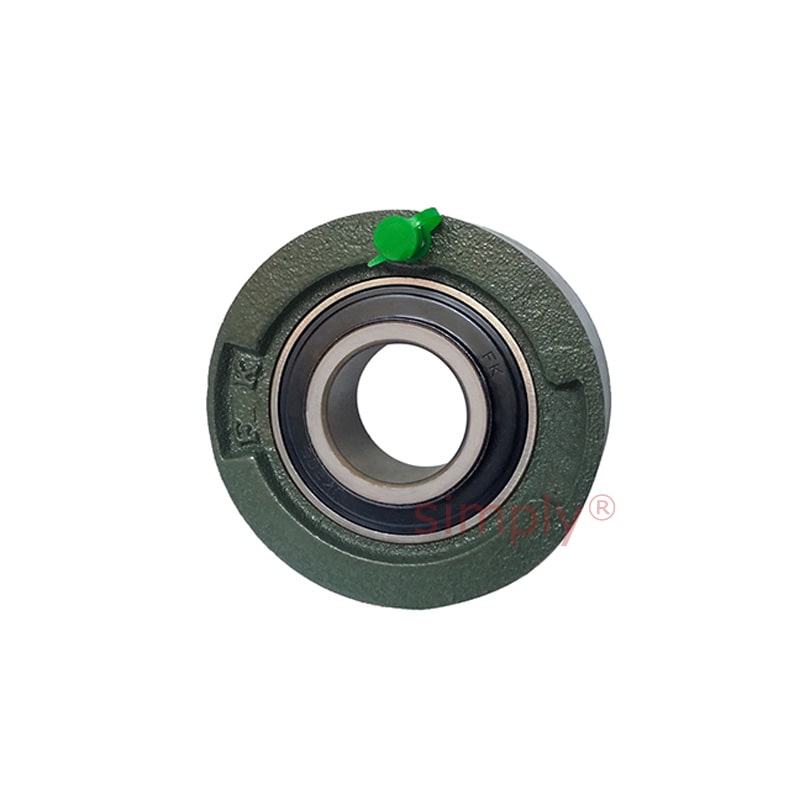

Budget UKC207/HS2307 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia
Budget UKC207/HS2307 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia
Regular price
€46,52
ex VAT
Regular price
Sale price
€46,52
ex VAT
In stock
Price Break
10+
€41,40
19+
€39,08
29+
€38,61
39+
€38,15
49+
€37,68
74+
€37,22
99+
€34,89
199+
€34,42
249+
€33,96
499+
€33,49
999+
€32,56
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 90mm = 3.5433 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-1/8 inch |
|---|---|
| Outer Dia a | 3.5433 inch |
| g | 1-7/64 inch |
| r | 0.079 inch |
| B | 1.693 inch |
| Bearing No | UK207;HS2307 |
| Housing No | C207 |
