SKU: UKC208/HE2308

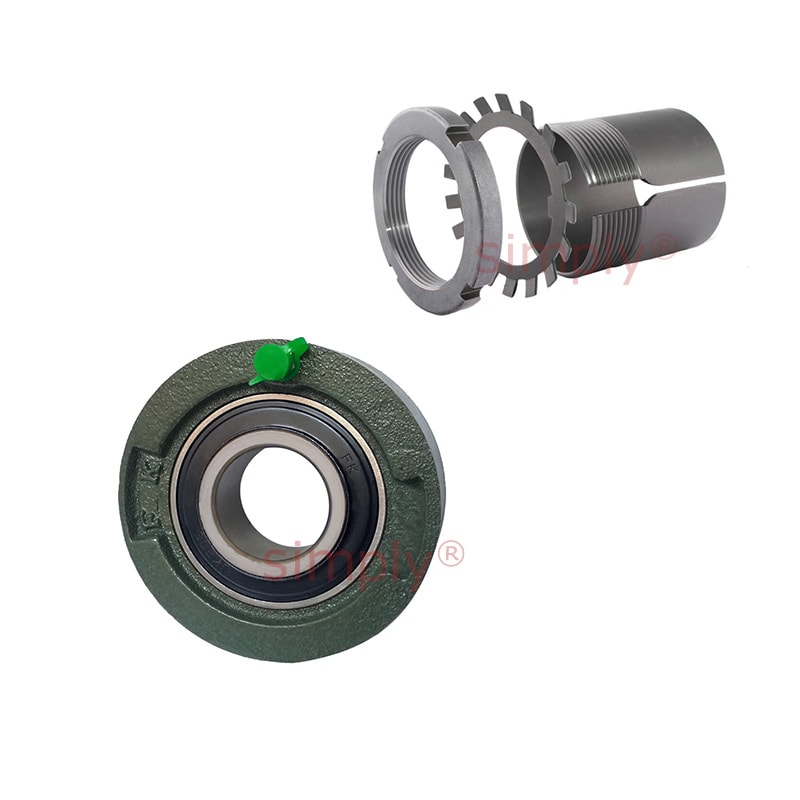

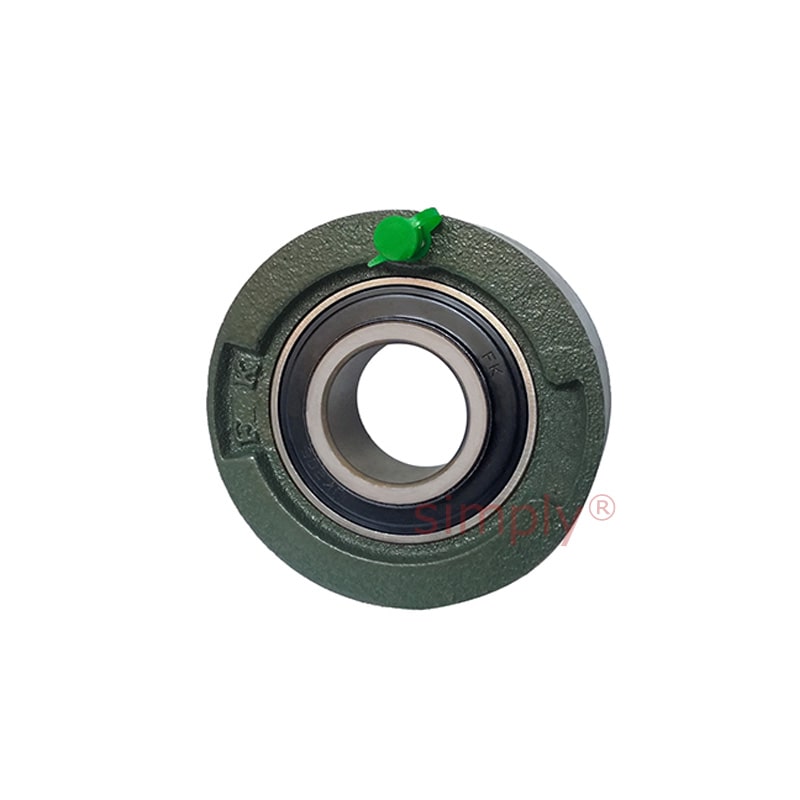

Budget UKC208/HE2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia
Budget UKC208/HE2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia
Regular price
€50,32
ex VAT
Regular price
Sale price
€50,32
ex VAT
In stock
Price Break
10+
€44,78
19+
€42,27
29+
€41,77
39+
€41,26
49+
€40,76
74+
€40,26
99+
€37,74
199+
€37,24
249+
€36,73
499+
€36,23
999+
€35,22
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-1/4 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.811 inch |
| Bearing No | UK208;HE2308 |
| Housing No | C208 |
