SKU: UKC210H-SNR
SNR UKC210H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
SNR UKC210H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
Regular price
€103,06
ex VAT
Regular price
Sale price
€103,06
ex VAT
In stock
Price Break
5+
€102,03
10+
€97,91
20+
€95,85
50+
€92,75
100+
€90,69
500+
€85,54
1000+
€72,14
Couldn't load pickup availability
Description
Description

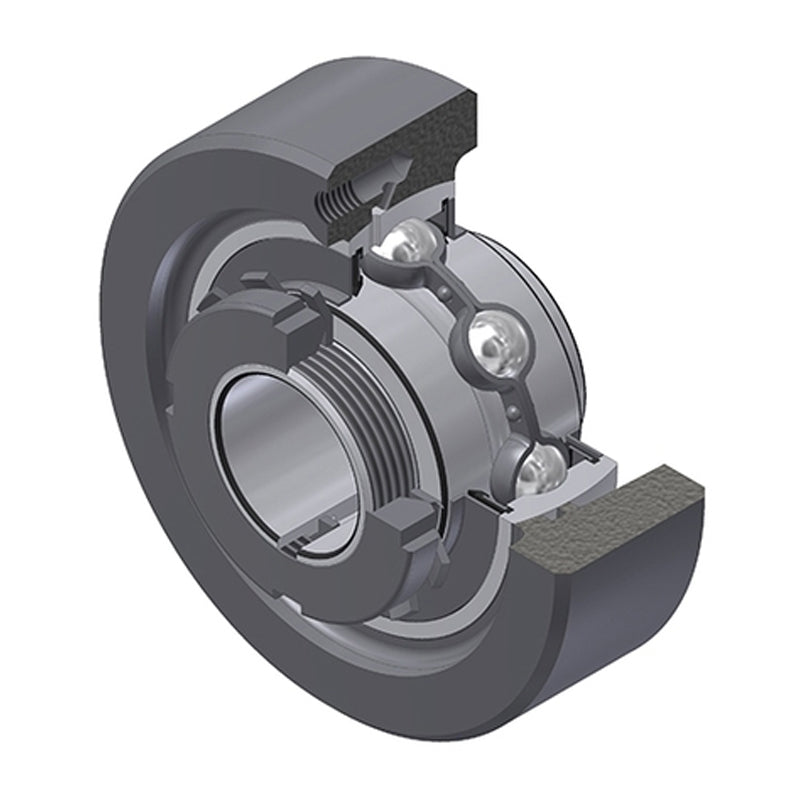

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKC
Technical
Technical

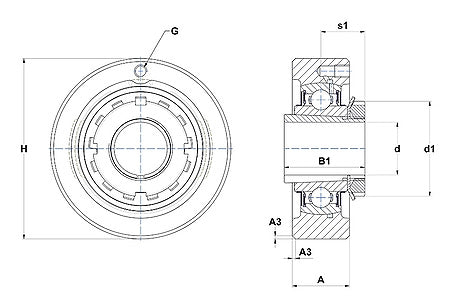

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 31mm |
| A3 | 2mm |
| B1 | 55mm |
| d1 | 70mm |
| H | 120mm |
| s1 | 27.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.03 kg |
