SKU: UKC308H-SNR

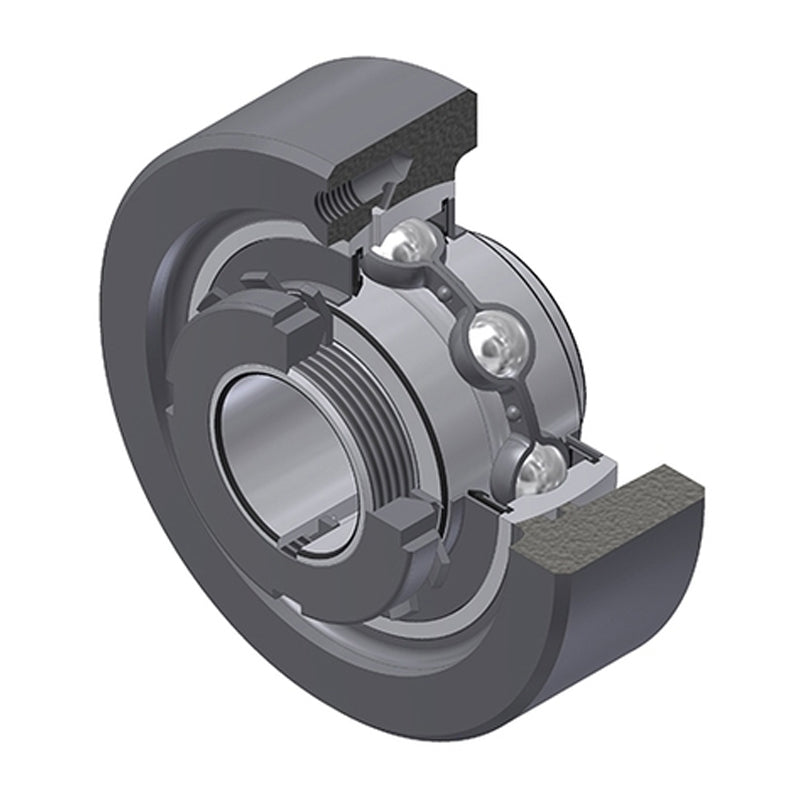

SNR UKC308H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
SNR UKC308H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
Regular price
€119,31
ex VAT
Regular price
Sale price
€119,31
ex VAT
In stock
Price Break
5+
€118,12
10+
€113,34
20+
€110,96
50+
€107,38
100+
€104,99
500+
€99,03
1000+
€83,52
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A3 | 2mm |
| B1 | 46mm |
| d1 | 58mm |
| H | 120mm |
| s1 | 27.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.22 kg |
