SKU: UKFE216H-SNR

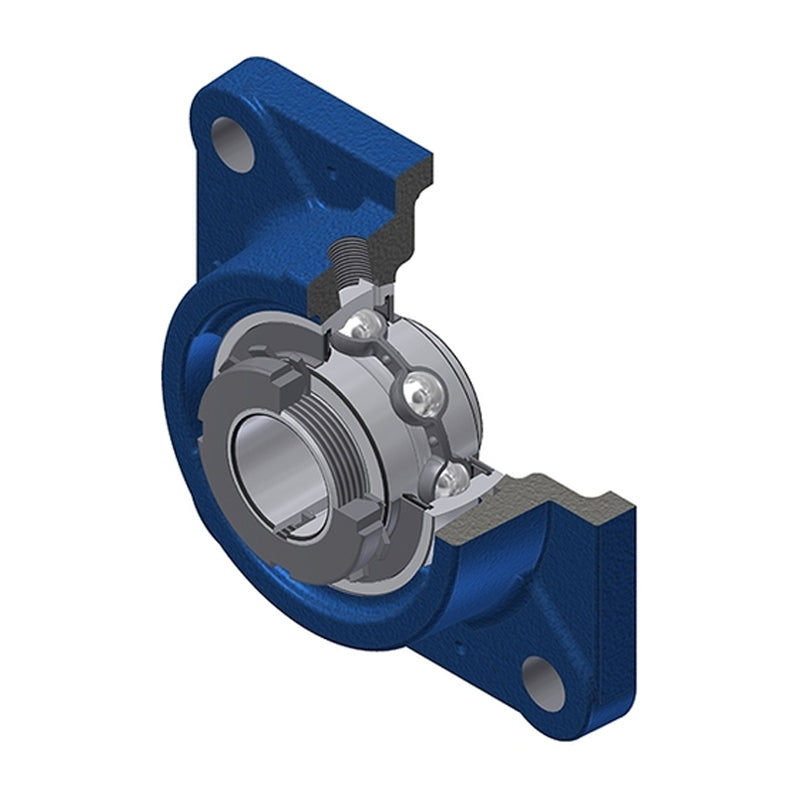

SNR UKFE216H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days

SNR UKFE216H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
Regular price €285,05 ex VAT
Regular price Sale price €285,05 ex VAT
Sale Sold out

In stock

Price Break
3+ €241,49
4+ €231,73
9+ €226,85
19+ €219,54
49+ €214,66
99+ €202,46
499+ €170,75
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

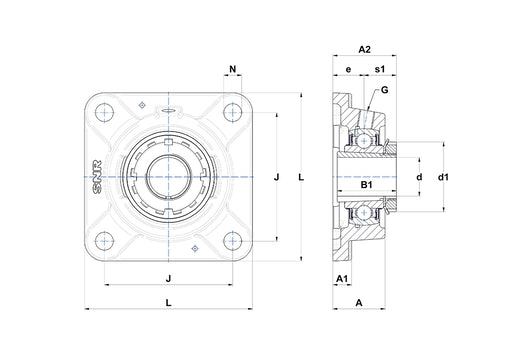

--- Dimensions
Shaft diameter 70mm
A 61mm
A1 20mm
A2 80.3mm
B 44mm
B1 78mm
d1 105mm
e 41.3mm
J 153mm
L 197mm
N 23mm
s1 39mm
G R1/8″
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2316
Mass 7.46 kg
