SKU: UKPE208H-SNR

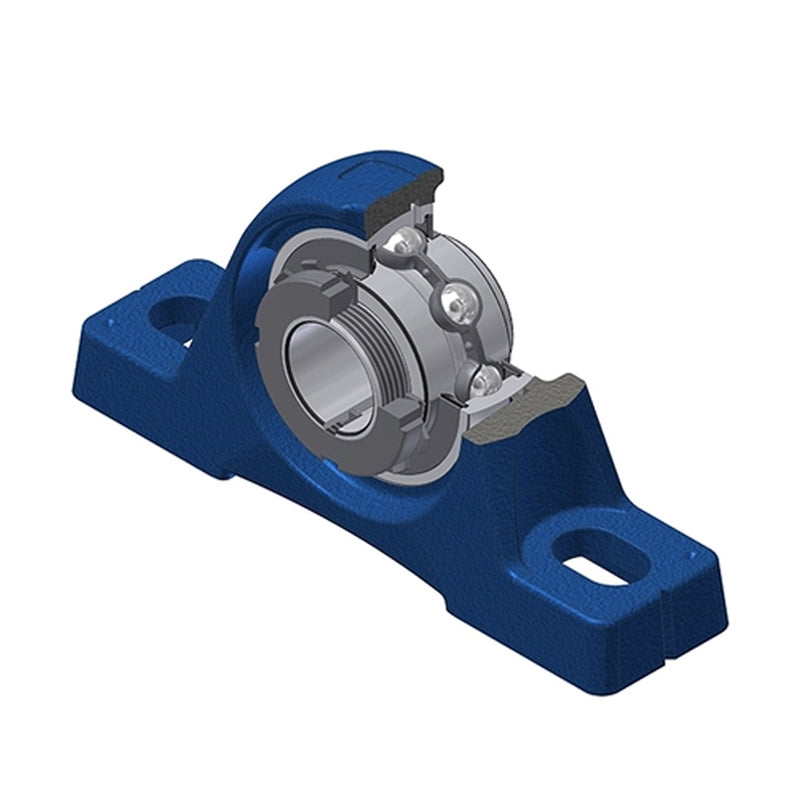

SNR UKPE208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 35mm Shaft - Allow 2-3 Days

SNR UKPE208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 35mm Shaft - Allow 2-3 Days
Regular price €64,72 ex VAT
Regular price Sale price €64,72 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,83
4+ €52,61
9+ €51,50
19+ €49,84
49+ €48,73
99+ €45,97
499+ €38,77
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 30mm
B 29mm
d1 58mm
H 49.2mm
H1 19mm
H2 99mm
J 138mm
L 179mm
L1 53mm
N 14mm
N1 26mm
s1 24.5mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2308
Mass 1.9 kg
