SKU: UKPH208HCO-SNR

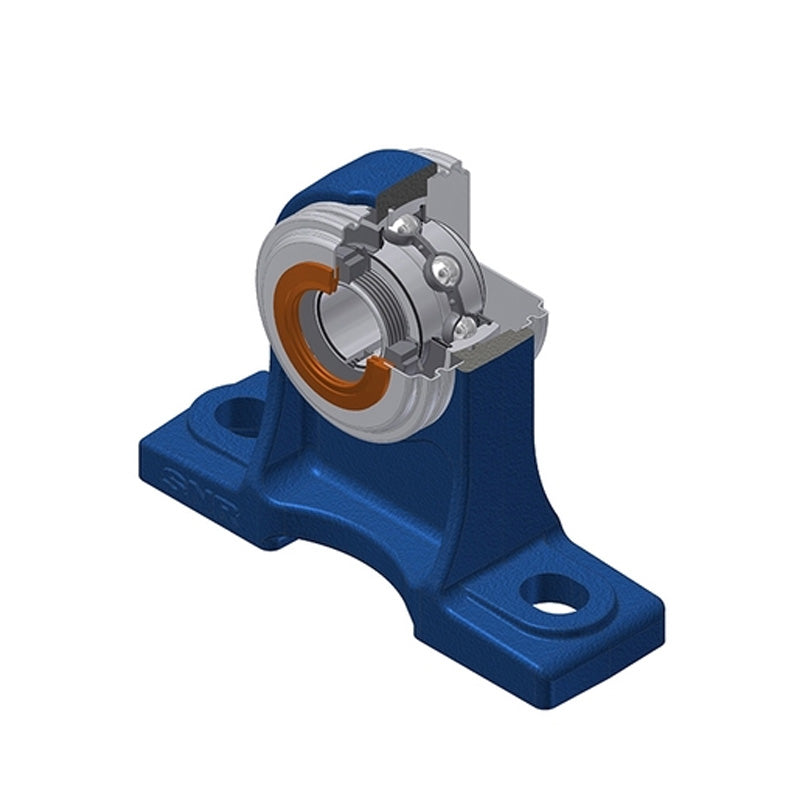

SNR UKPH208HCO Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days

SNR UKPH208HCO Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
Regular price €103,56 ex VAT
Regular price Sale price €103,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,73
4+ €84,19
9+ €82,42
19+ €79,76
49+ €77,99
99+ €73,55
499+ €62,03
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

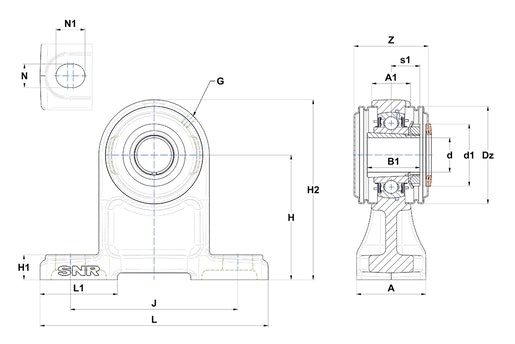

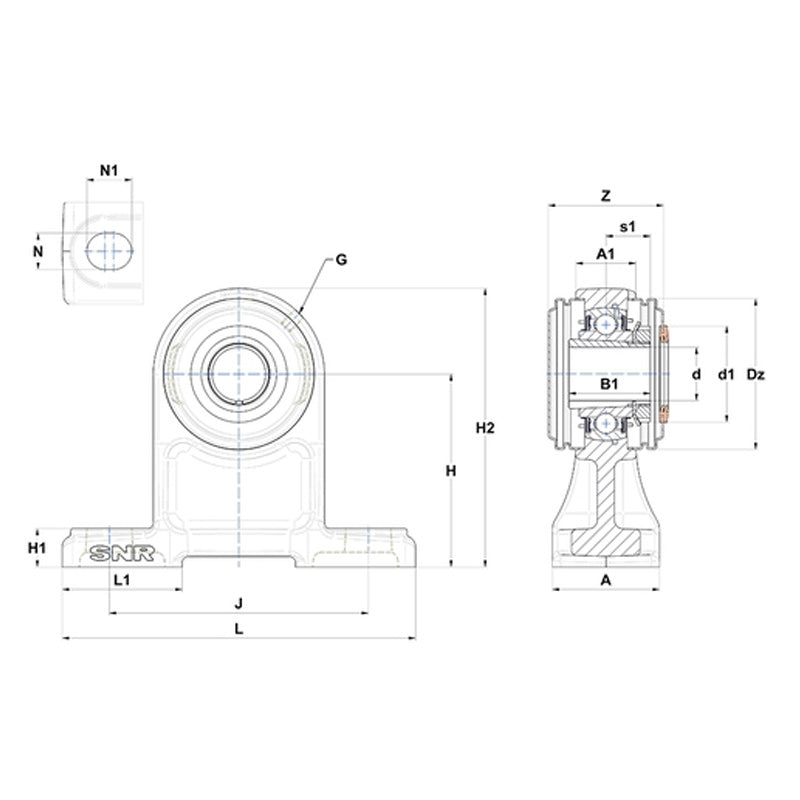

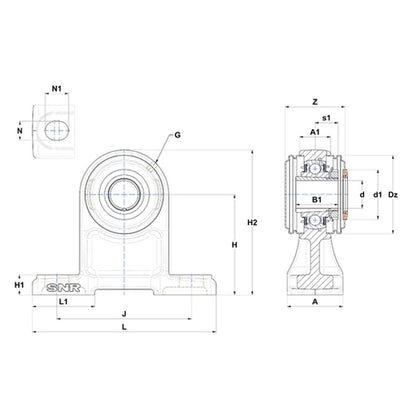

--- Dimensions
Shaft diameter 35mm
A 70mm
A1 34mm
B 29mm
d1 58mm
H 100mm
H1 19mm
H2 149mm
J 137mm
L 184mm
L1 58mm
N 17mm
N1 25mm
Dz 88mm
Z 69.8mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor Sleeve H2308
Mass 2.944 kg
