SKU: UKSP210HCO-SNR

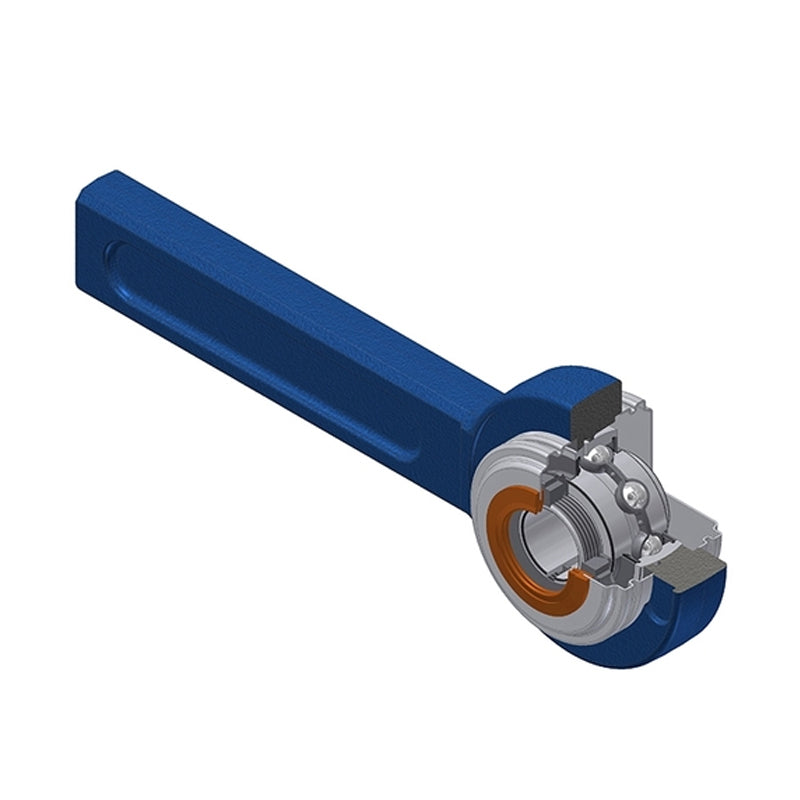

SNR UKSP210HCO Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Open Version - with Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKSP210HCO Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Open Version - with Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
€292,08
ex VAT
Regular price
Sale price
€292,08
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
€289,16
10+
€277,48
20+
€271,63
50+
€262,87
100+
€257,03
500+
€242,43
1000+
€204,46
Couldn't load pickup availability
Share this product
Description
Description
UKSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKSP
Technical
Technical

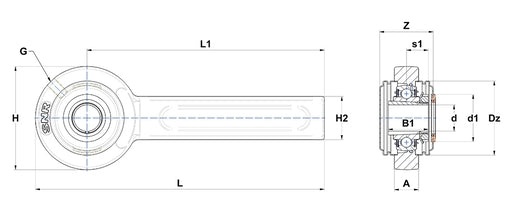

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 31mm |
| B1 | 55mm |
| d1 | 70mm |
| H | 120mm |
| H2 | 61mm |
| L | 320mm |
| L1 | 260mm |
| Dz | 100mm |
| Z | 75.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR21 |
| Stretcher frame 3 | SPR22 |
| Stretcher frame 4 | SPR24 |
| Adaptor sleeve | H2310 |
| Mass | 4.152 kg |
