SKU: UKT206/H2306

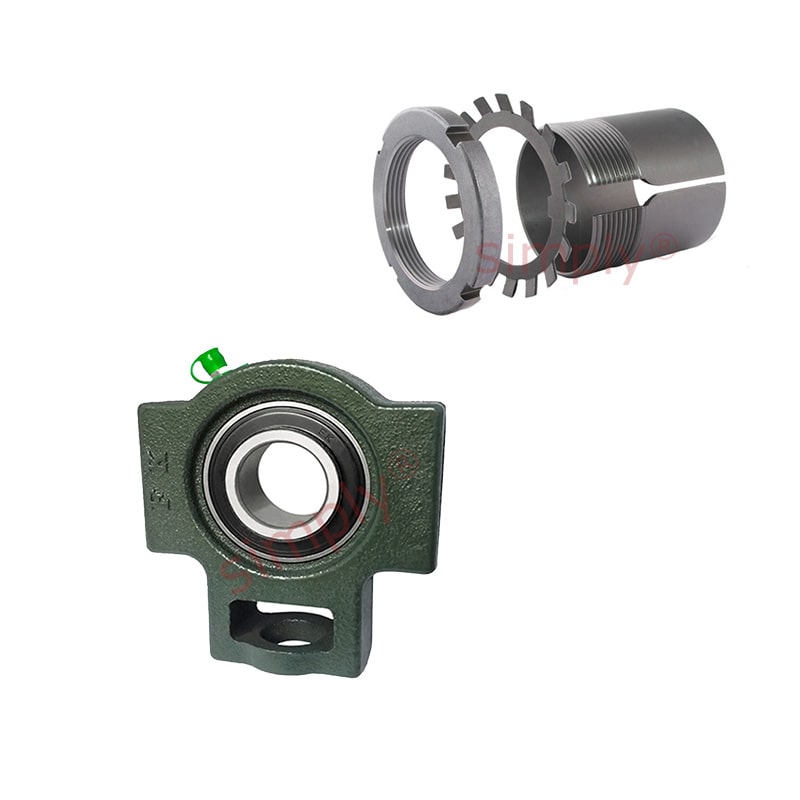

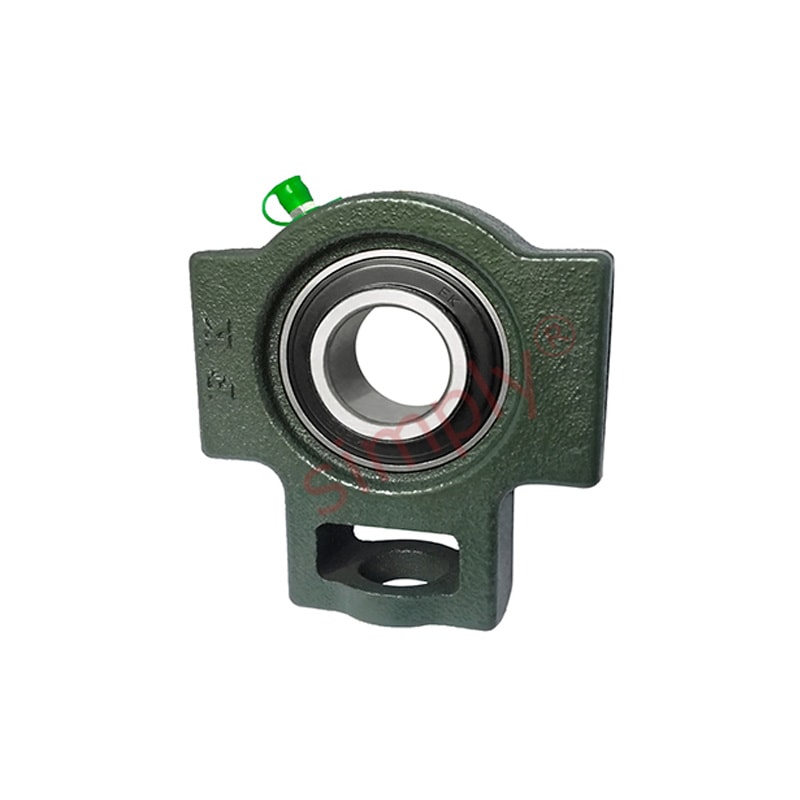

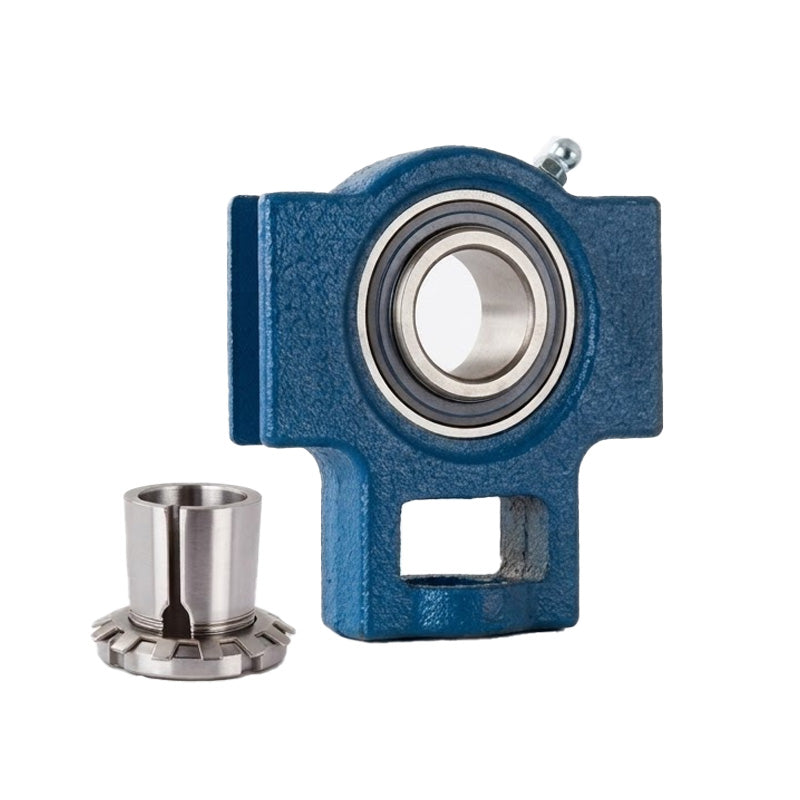

UKT206/H2306 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 25mm Shaft
UKT206/H2306 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 25mm Shaft
Regular price
€37,70
ex VAT
Regular price
Sale price
€37,70
ex VAT
In stock
Price Break
10+
€33,55
19+
€31,67
29+
€31,29
39+
€30,91
49+
€30,54
74+
€30,16
99+
€28,28
199+
€27,90
249+
€27,52
499+
€27,14
999+
€26,39
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UKT
Technical
Technical
| d | 25mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 56mm |
| q | 37mm |
| s | 22mm |
| b | 57mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| w | 113mm |
| j | 37mm |
| l | 28mm |
| h | 70mm |
| t | 53mm |
| B1 | 38mm |
| Bearing no | UK206;H2306 |
| Housing no | T206 |
| Weight | 1.26 kg |
