SKU: UKT213HCC-SNR

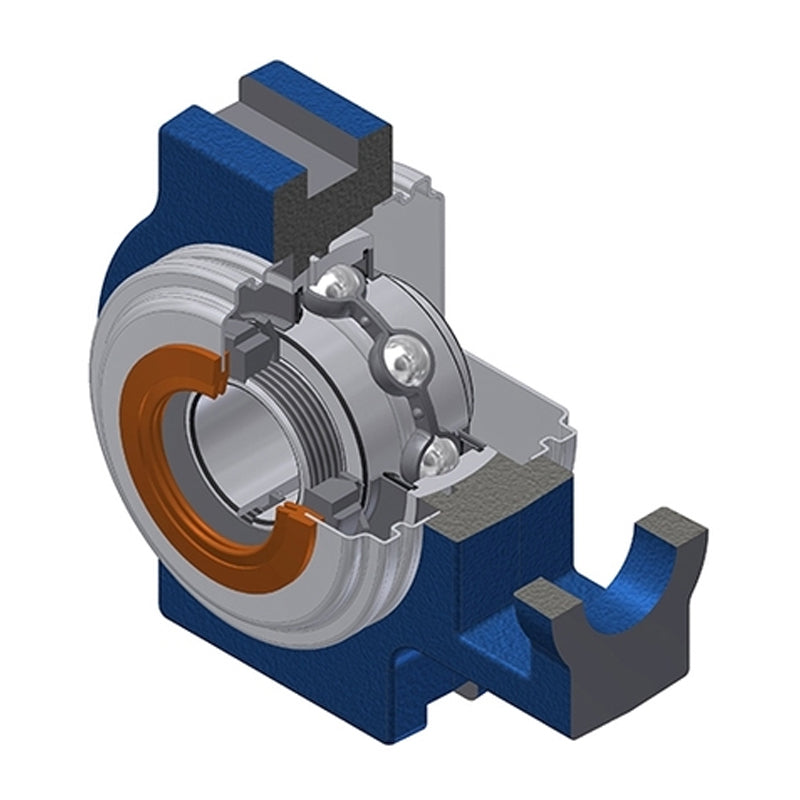

SNR UKT213HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT213HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Closed Version - Allow 2-3 Days
Regular price €233,03 ex VAT
Regular price Sale price €233,03 ex VAT
Sale Sold out

In stock

Price Break
3+ €197,42
4+ €189,44
9+ €185,45
19+ €179,47
49+ €175,48
99+ €165,51
499+ €139,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 26mm
A2 44mm
B1 65mm
d1 85mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
Dz 132mm
Z 90.6mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2313
Mass 7.035 kg
