SKU: UKT310H-SNR

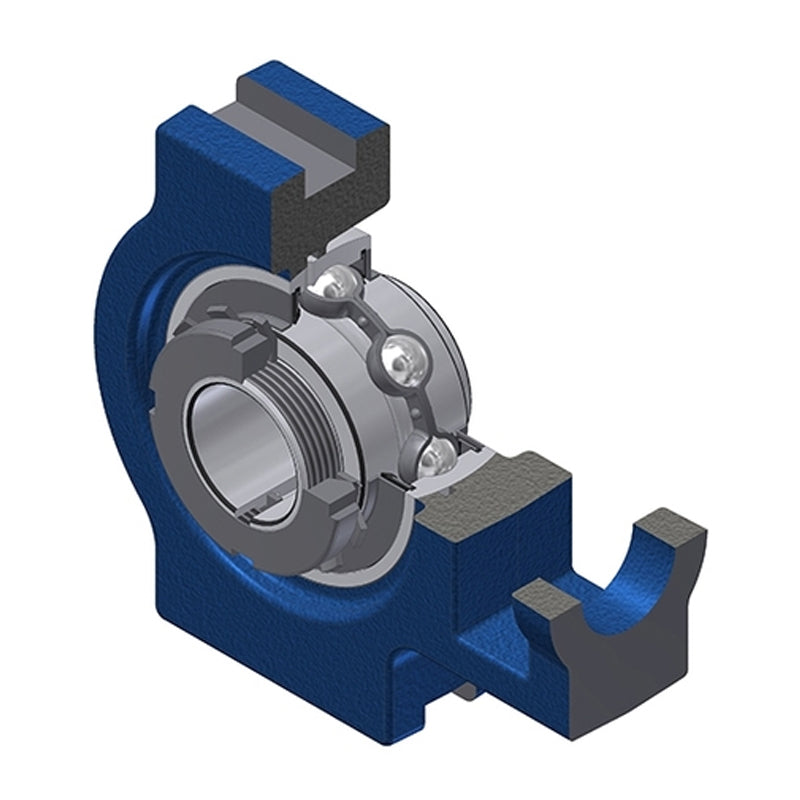

SNR UKT310H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days

SNR UKT310H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price €181,32 ex VAT
Regular price Sale price €181,32 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,61
4+ €147,40
9+ €144,30
19+ €139,64
49+ €136,54
99+ €128,78
499+ €108,61
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 61mm
A1 20mm
A2 40mm
B1 55mm
d1 70mm
H 151mm
H1 140mm
H2 98mm
L 192mm
L1 118mm
L2 22mm
L3 106mm
N 37mm
N1 27mm
N2 61mm
s1 32mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 37.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 5.09 kg
