SKU: UKT324H-SNR

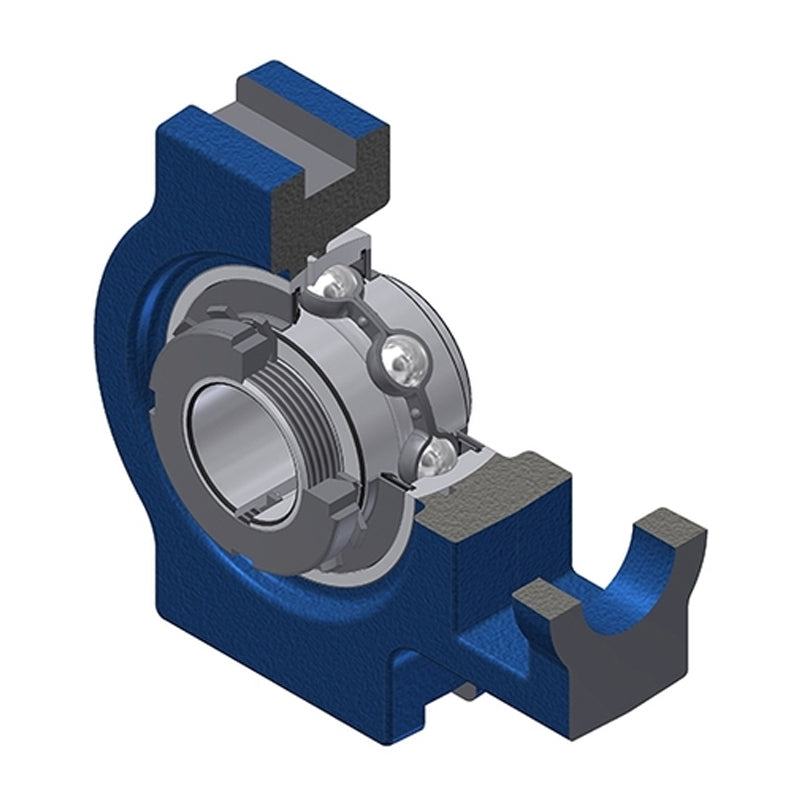

SNR UKT324H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 110mm Shaft - Allow 2-3 Days

SNR UKT324H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 110mm Shaft - Allow 2-3 Days
Regular price €1.117,65 ex VAT
Regular price Sale price €1.117,65 ex VAT
Sale Sold out

In stock

Price Break
3+ €908,59
4+ €860,77
9+ €812,95
19+ €765,13
49+ €746,00
99+ €726,87
499+ €631,23
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 110mm
A 140mm
A1 45mm
A2 90mm
B1 112mm
d1 155mm
H 355mm
H1 320mm
H2 210mm
L 432mm
L1 267mm
L2 44mm
L3 230mm
N 70mm
N1 60mm
N2 140mm
s1 65.5mm
G M10x1
--- Load rating
Dynamic load C 228 kN
Static load C0 208 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2324
Mass 53.9 kg
