SKU: UR.205.SP

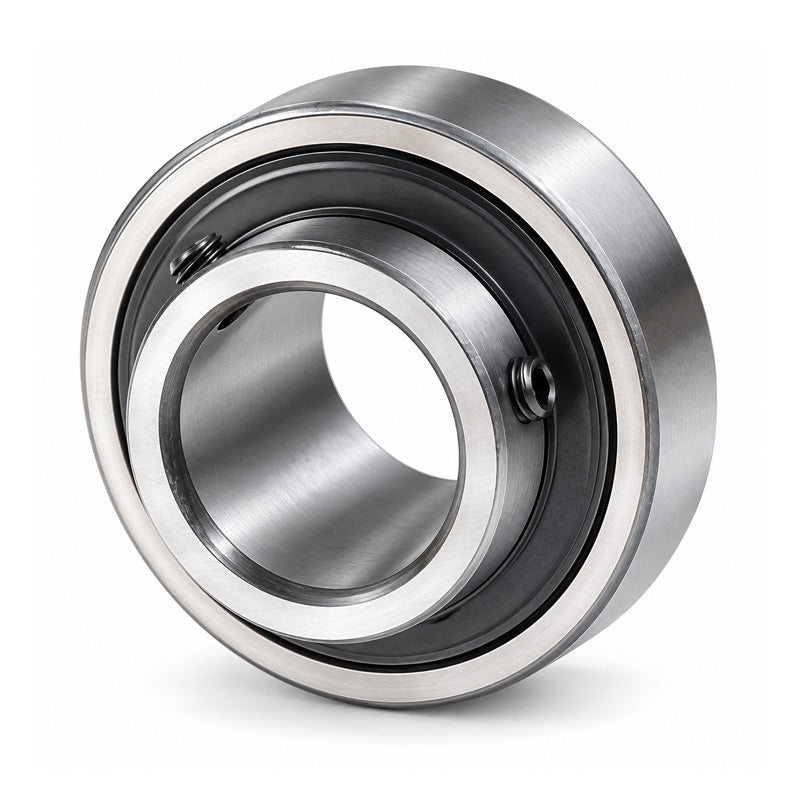

UR205SP Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
UR205SP Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
€8,33
ex VAT
Regular price
Sale price
€8,33
ex VAT
In stock
Price Break
10+
€7,41
19+
€7,00
29+
€6,91
39+
€6,83
49+
€6,75
74+
€6,66
99+
€6,25
199+
€6,16
249+
€6,08
499+
€6,00
999+
€5,83
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Type:
- Parallel Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
