SKU: US202-10G2-SNR

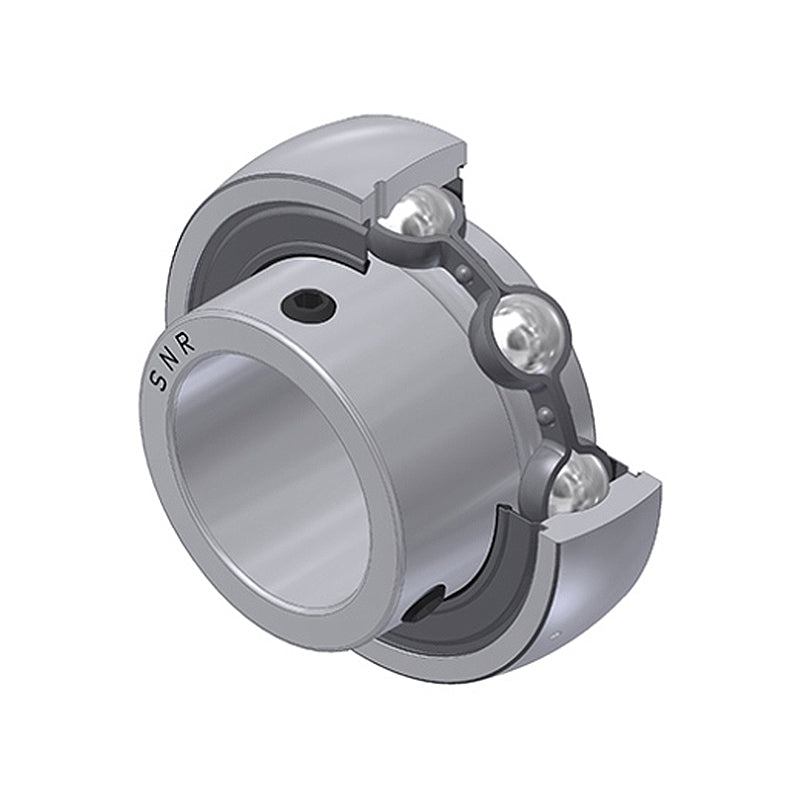

SNR US202-10G2 Imperial Flatback Spherical Outer Bearing Insert 5/8 inch Bore 40mm Outside Diameter with Grub Screws - Allow 2-3 Days
Equivalent to: SB202-10
In stock
Price Break
Description
SNR US Flatback Spherical Outer Bearing Insert with Grub Screws: This bearing insert is crafted as a standard version, offering dependable performance across various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer with a vulcanized seal, where the axially preloaded seal lip is made from NBR and positioned behind a protective edge. Designed for normal environmental conditions, this insert supports medium to high rotation speeds, ensuring consistent performance in demanding settings.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: SB202-10
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 10-32UNF
- Inside Diameter:
- 15.875mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Width:
- 22mm
- Style:
- US
Technical
| d | 5/8 inch |
|---|---|
| d | 15.875mm |
| D | 40mm |
| C | 12mm |
| B | 22mm |
| S | 6mm |
| m | 4mm |
| C1 | 3.6mm |
| r min | 0.6mm |
| G | 10-32UNF |
| Wrench Size | 3/32 inch |
| Set screw torque | 3.2 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 9.6kN |
| Static load rating C0 | 4.8kN |
| Weight | 0.1kg |
