SKU: US205-15G2-SNR

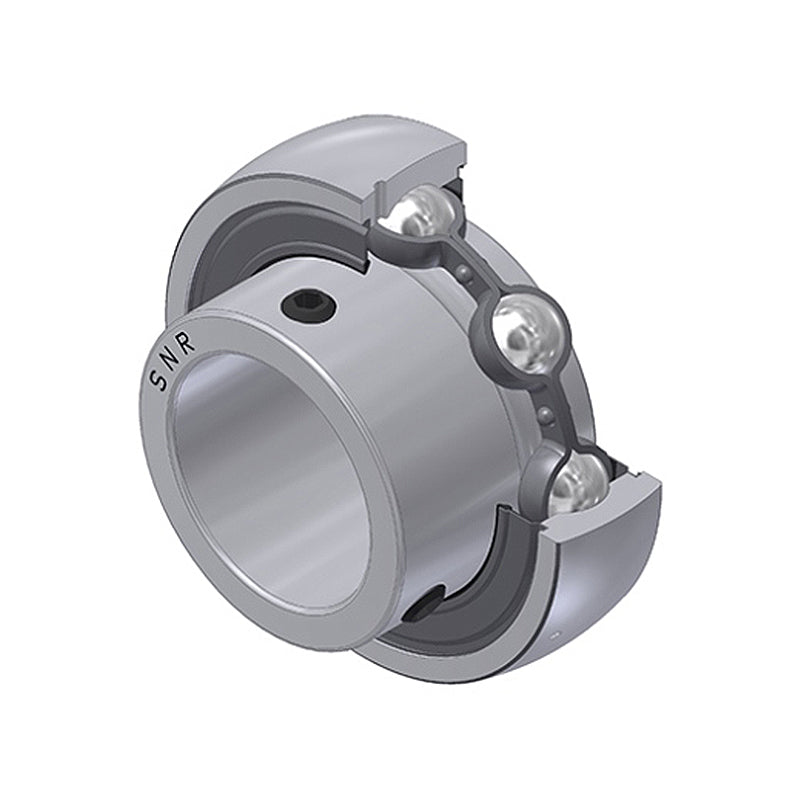

SNR US205-15G2 Imperial Flatback Spherical Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws - Allow 2-3 Days
Equivalent to: SB205-15
In stock
Price Break
Description
SNR US Flatback Spherical Outer Bearing Insert with Grub Screws: This bearing insert is crafted as a standard version, offering dependable performance across various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer with a vulcanized seal, where the axially preloaded seal lip is made from NBR and positioned behind a protective edge. Designed for normal environmental conditions, this insert supports medium to high rotation speeds, ensuring consistent performance in demanding settings.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: SB205-15
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 1/4-28UNF
- Inside Diameter:
- 23.813mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Width:
- 27mm
- Style:
- US
Technical
| d | 15/16 inch |
|---|---|
| d | 23.813mm |
| D | 52mm |
| C | 15mm |
| B | 27mm |
| S | 7.5mm |
| m | 5.5mm |
| C1 | 4.3mm |
| r min | 0.6mm |
| G | 1/4-28UNF |
| Wrench Size | 1/8 inch |
| Set screw torque | 3.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 14kN |
| Static load rating C0 | 7.9kN |
| Weight | 0.2kg |
