SKU: USC205-SNR

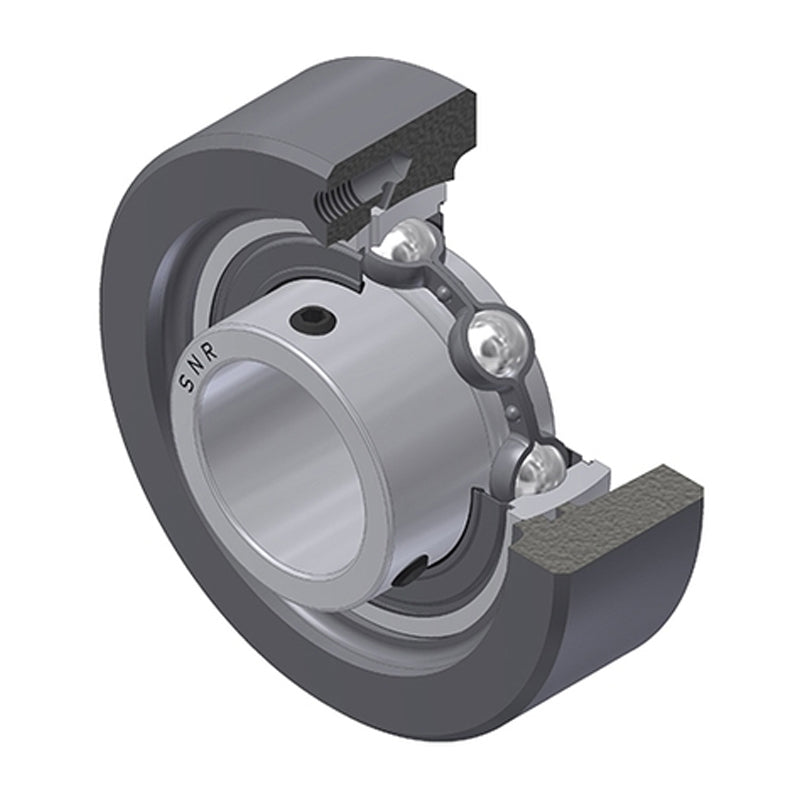

SNR USC205 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 22mm Outside Dia - Allow 2-3 Days
SNR USC205 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 22mm Outside Dia - Allow 2-3 Days
Regular price
€25,73
ex VAT
Regular price
Sale price
€25,73
ex VAT
In stock
Price Break
5+
€25,47
10+
€24,44
20+
€23,93
50+
€23,16
100+
€22,64
500+
€21,36
1000+
€18,01
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 22mm |
| A3 | 1.5mm |
| B | 27mm |
| H | 80mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.57 kg |
