SKU: USFA209CC-SNR

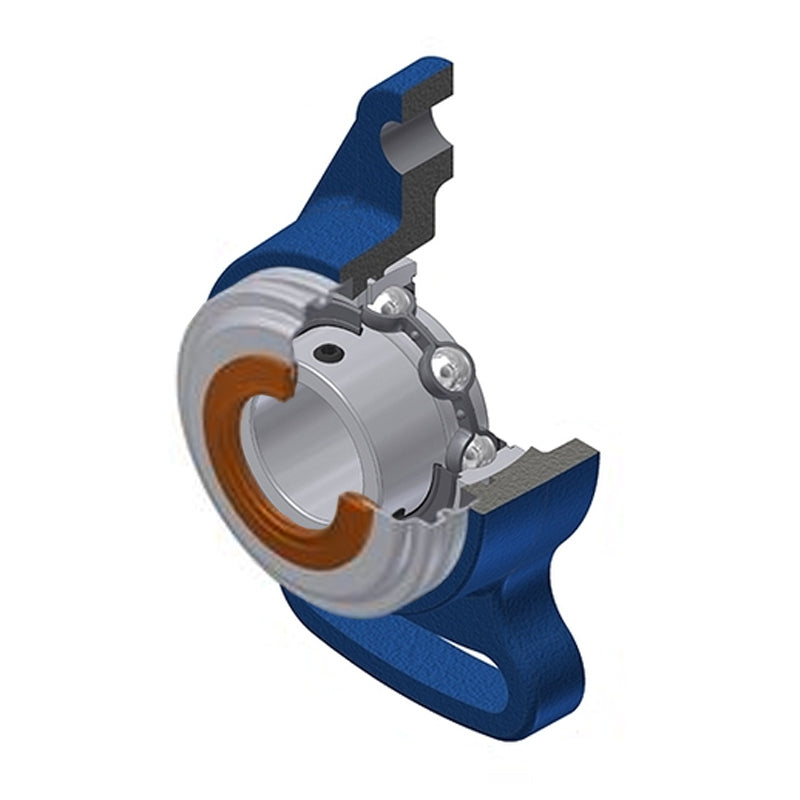

SNR USFA209CC Metric Cast Iron Adjustable Flange Unit with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USFA209CC Metric Cast Iron Adjustable Flange Unit with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€77,68
ex VAT
Regular price
Sale price
€77,68
ex VAT
In stock
Price Break
3+
€65,81
4+
€63,15
9+
€61,82
19+
€59,82
49+
€58,49
99+
€55,17
499+
€46,53
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USFA
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 18mm |
| A2 | 53mm |
| B | 41.2mm |
| e | 22mm |
| H | 181mm |
| J | 148mm |
| J1 | 72mm |
| L | 108mm |
| L1 | 90mm |
| N | 15mm |
| S | 10.2mm |
| Dz | 95mm |
| Z | 57.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.94 kg |
