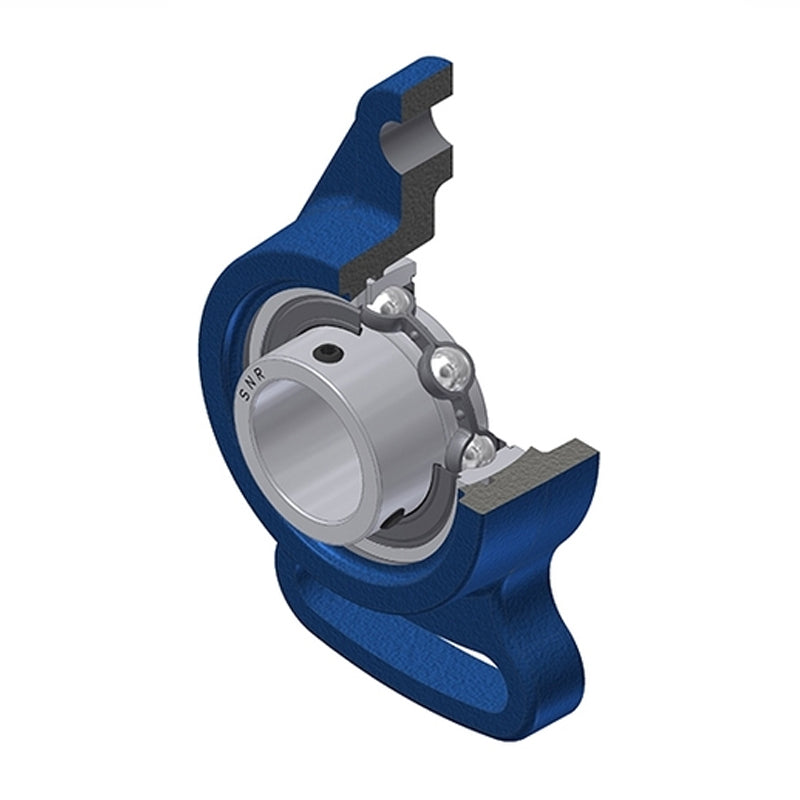

SNR USFA210 Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days
SNR USFA210 Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days
Regular price
€64,72
ex VAT
Regular price
Sale price
€64,72
ex VAT
In stock
Price Break
3+
€54,83
4+
€52,61
9+
€51,50
19+
€49,84
49+
€48,73
99+
€45,97
499+
€38,77
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USFA
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 18mm |
| A2 | 54.6mm |
| B | 43.5mm |
| e | 22mm |
| H | 190mm |
| J | 157mm |
| J1 | 76mm |
| L | 115mm |
| L1 | 94mm |
| N | 15mm |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.16 kg |
