SKU: USFC203CO-SNR

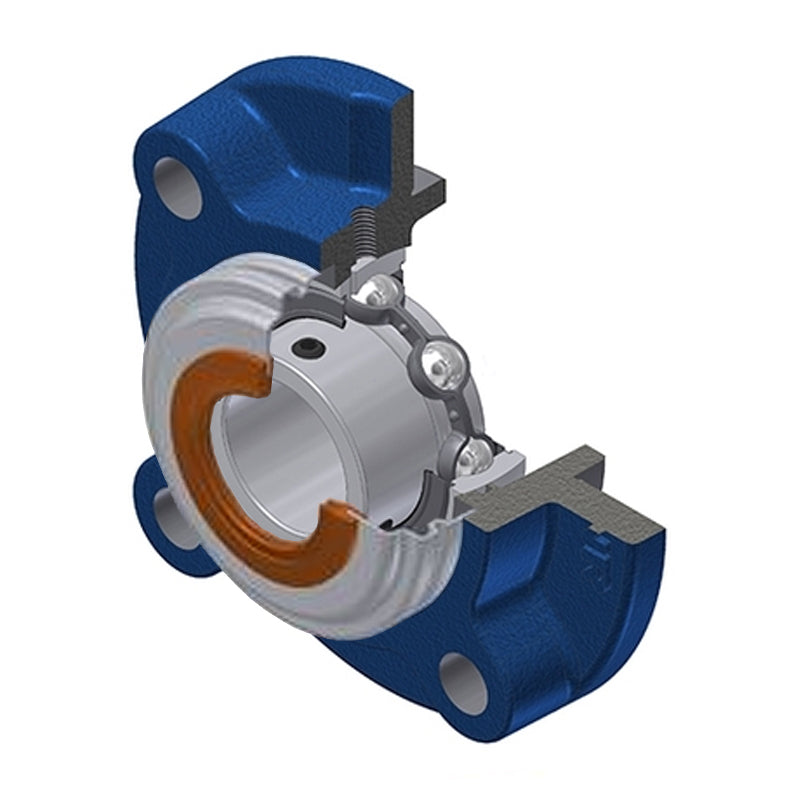

SNR USFC203CO Metric Four Bolt Cast Iron Round Flanged Housing with 17mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USFC203CO Metric Four Bolt Cast Iron Round Flanged Housing with 17mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€64,70
ex VAT
Regular price
Sale price
€64,70
ex VAT
In stock
Price Break
3+
€54,82
4+
€52,60
9+
€51,49
19+
€49,83
49+
€48,73
99+
€45,96
499+
€38,76
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- USFC
- Pitch Circle Diameter:
- 70mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 17mm |
| A | 23mm |
| A1 | 5mm |
| A2 | 26mm |
| A4 | 19mm |
| B | 22mm |
| e | 10mm |
| H3 | 55mm |
| J | 70mm |
| L | 90mm |
| N | 12mm |
| S | 6mm |
| Dz | 46mm |
| Z | 34.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.483 kg |
