SKU: USFD203M6-SNR

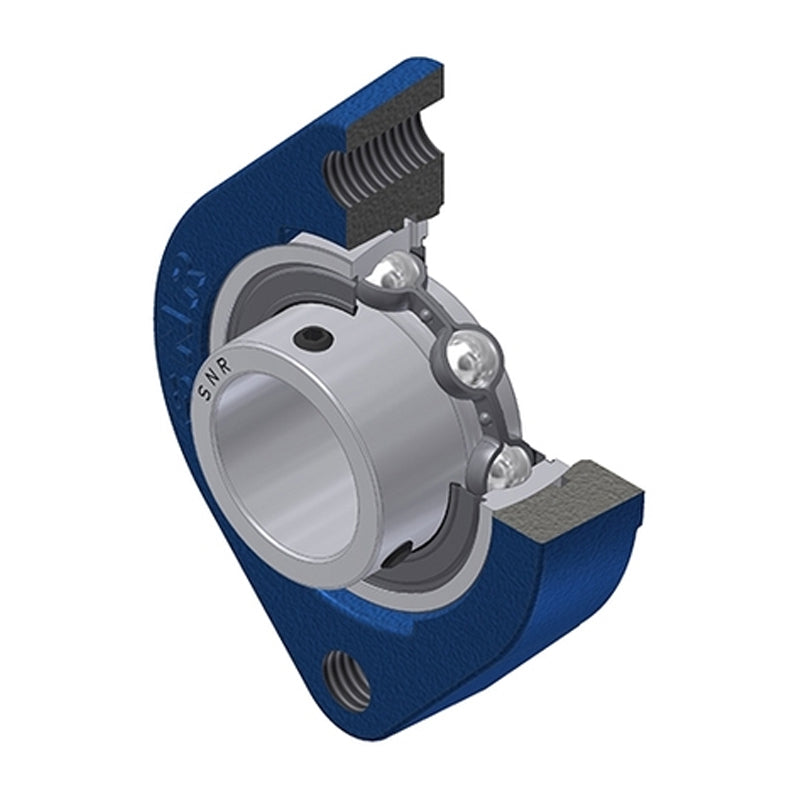

SNR USFD203M6 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
SNR USFD203M6 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
€23,30
ex VAT
Regular price
Sale price
€23,30
ex VAT
In stock
Price Break
3+
€19,74
4+
€18,94
9+
€18,54
19+
€17,95
49+
€17,55
99+
€16,55
499+
€13,96
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFD200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- USFD
- Bolt Hole Centres:
- 24.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| A | 15mm |
| A2 | 24.4mm |
| B | 22mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N1 | M6 |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.3 kg |
