SKU: USFD207M12-SNR

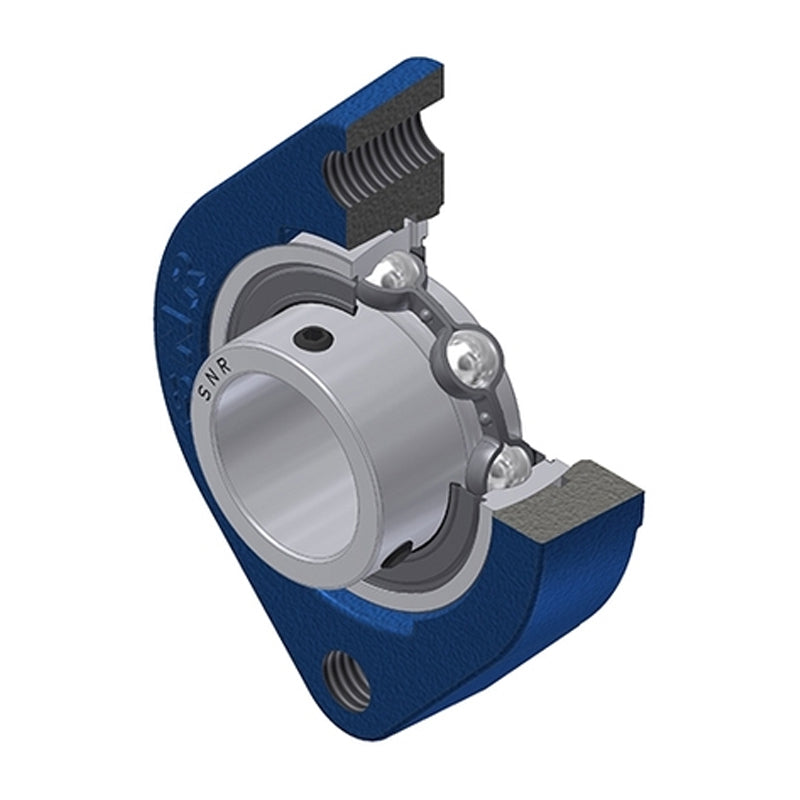

SNR USFD207M12 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
SNR USFD207M12 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
€41,40
ex VAT
Regular price
Sale price
€41,40
ex VAT
In stock
Price Break
3+
€35,08
4+
€33,66
9+
€32,95
19+
€31,89
49+
€31,18
99+
€29,41
499+
€24,80
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFD200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USFD
- Bolt Hole Centres:
- 35.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 22mm |
| A2 | 35.9mm |
| B | 32mm |
| e | 12.4mm |
| H | 126mm |
| J | 100mm |
| L | 94mm |
| N1 | M12 |
| S | 8.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.92 kg |
