SKU: USPE212N-SNR

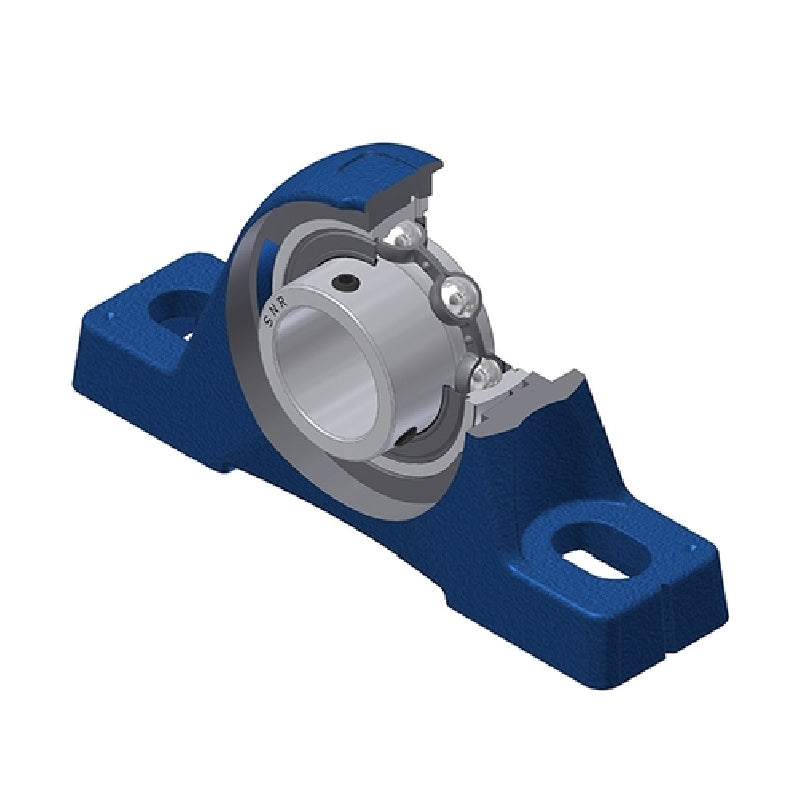

SNR USPE212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR USPE212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price €129,53 ex VAT
Regular price Sale price €129,53 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,73
4+ €105,30
9+ €103,08
19+ €99,76
49+ €97,54
99+ €92,00
499+ €77,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

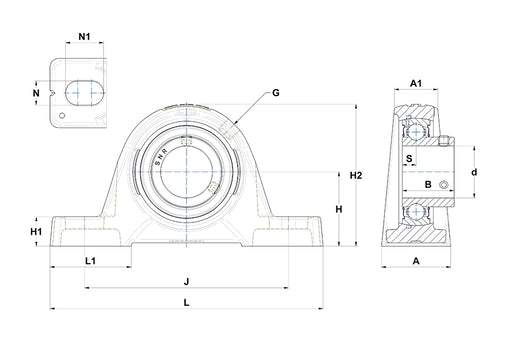

--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 53.7mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 14.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.5 kg
