SKU: USPLE211CO-SNR

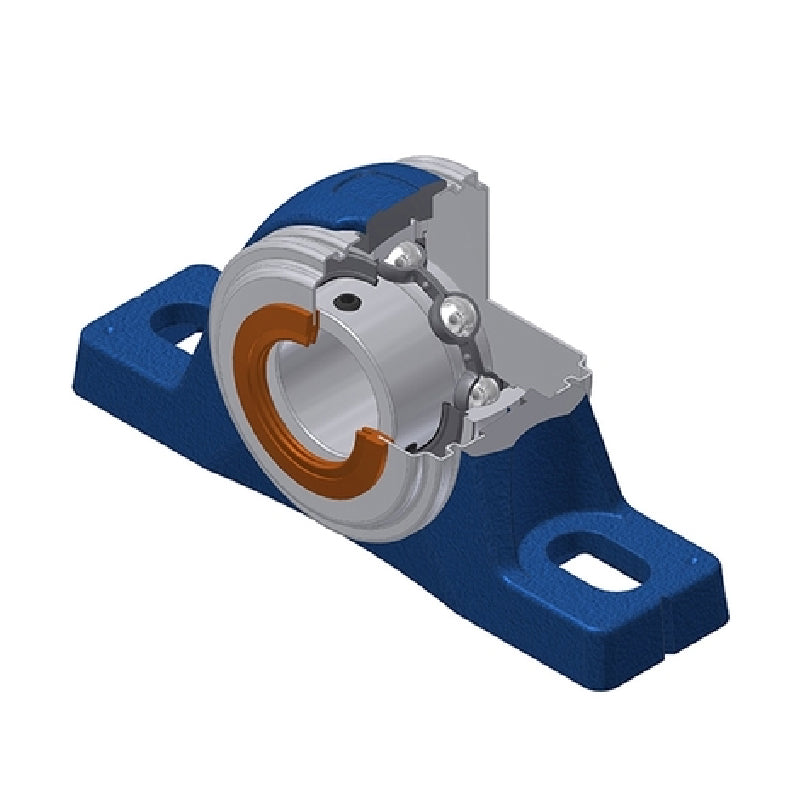

SNR USPLE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
SNR USPLE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
€103,06
ex VAT
Regular price
Sale price
€103,06
ex VAT
In stock
Price Break
5+
€102,03
10+
€97,91
20+
€95,85
50+
€92,75
100+
€90,69
500+
€85,54
1000+
€72,14
Couldn't load pickup availability
Description
Description
USPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USPLE
- Bolt Hole Centres:
- 170.5mm
Technical
Technical

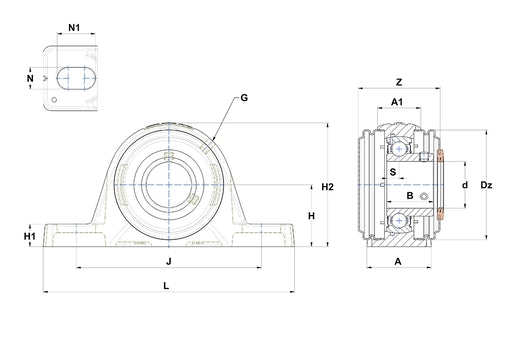

| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 60mm |
| A1 | 39.5mm |
| B | 45.3mm |
| H | 61.3mm |
| H1 | 23.2mm |
| H2 | 128mm |
| J | 170.5mm |
| L | 219.5mm |
| N | 18mm |
| N1 | 26mm |
| S | 11.8mm |
| Dz | 110mm |
| Z | 78.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.612 kg |
