SKU: USSP206N-SNR

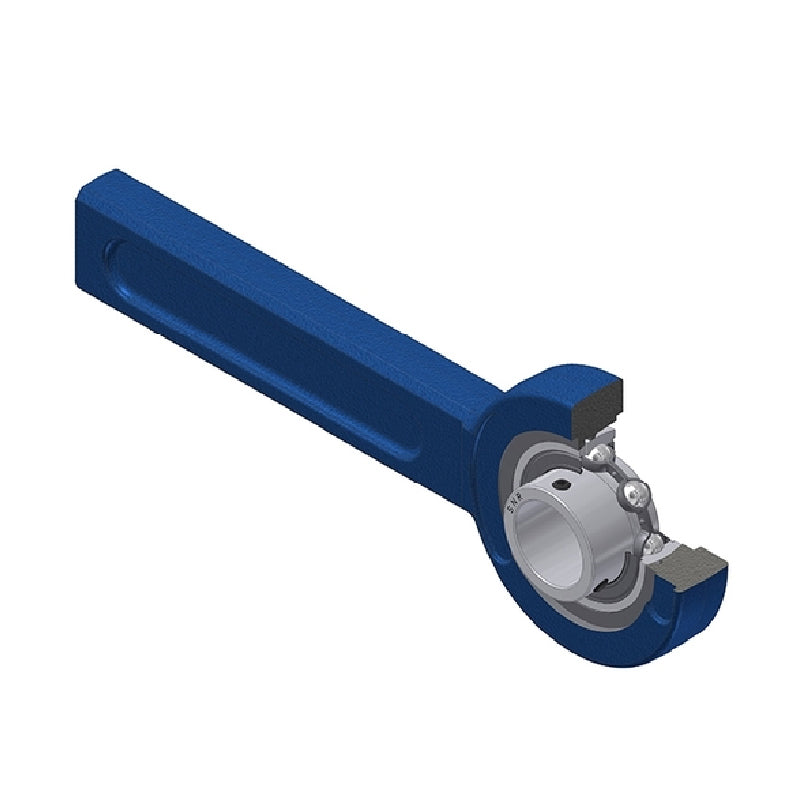

SNR USSP206N Metric Cast Iron Tensioner Unit with 30mm Bore Insert - Allow 2-3 Days
SNR USSP206N Metric Cast Iron Tensioner Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
€116,59
ex VAT
Regular price
Sale price
€116,59
ex VAT
In stock
Price Break
3+
€98,77
4+
€94,78
9+
€92,79
19+
€89,79
49+
€87,80
99+
€82,81
499+
€69,84
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 21mm |
| B | 30mm |
| H | 98mm |
| H2 | 41mm |
| L | 274mm |
| L1 | 225mm |
| S | 8mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Mass | 1.87 kg |
