SKU: W63003-2RS-EU

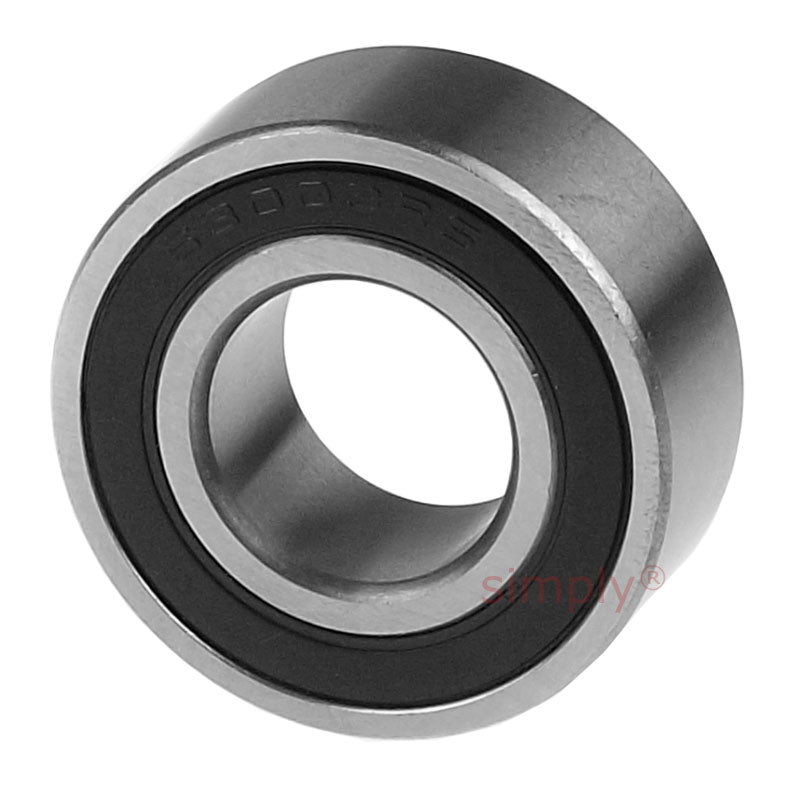

W630032RS Budget Stainless Steel Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
Equivalent to: W63003NSE W63003DU W63003RS W630032RSH W63003P W63003RSR W63003LU W630032NSE W63003DDU W63003PP W63003LLU W630032RS1 W6300322RSH W630032RSR W630032RS W630032RS W630032RSH W630032RS1
In stock
Price Break
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: W63003NSE W63003DU W63003RS W630032RSH W63003P W63003RSR W63003LU W630032NSE W63003DDU W63003PP W63003LLU W630032RS1 W6300322RSH W630032RSR W630032RS W630032RS W630032RSH W630032RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 14mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.05 kN |
| Static load Cor | 3.25 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 45000 rpm |
