SKU: WHG30-2-SKF

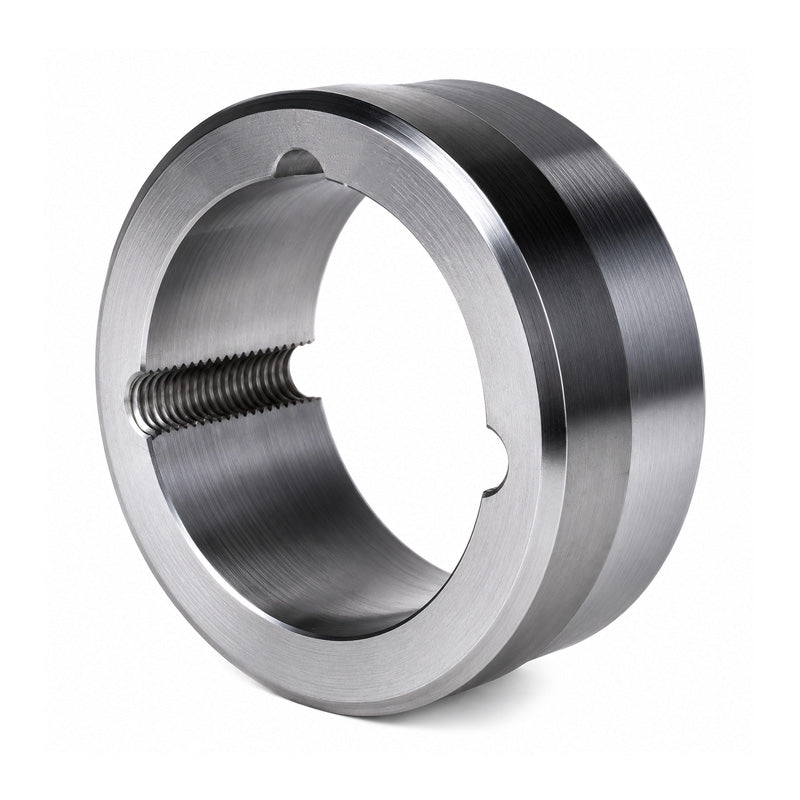

SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€49,27
ex VAT
Regular price
Sale price
€49,27
ex VAT
In stock
Price Break
10+
€43,85
19+
€41,39
29+
€40,89
39+
€40,40
49+
€39,91
74+
€39,42
99+
€36,95
199+
€36,46
249+
€35,97
499+
€35,47
999+
€34,49
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 145mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WHG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 145mm |
| B | 140mm |
| C | 139.5mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
