SKU: WHG40-1-SKF

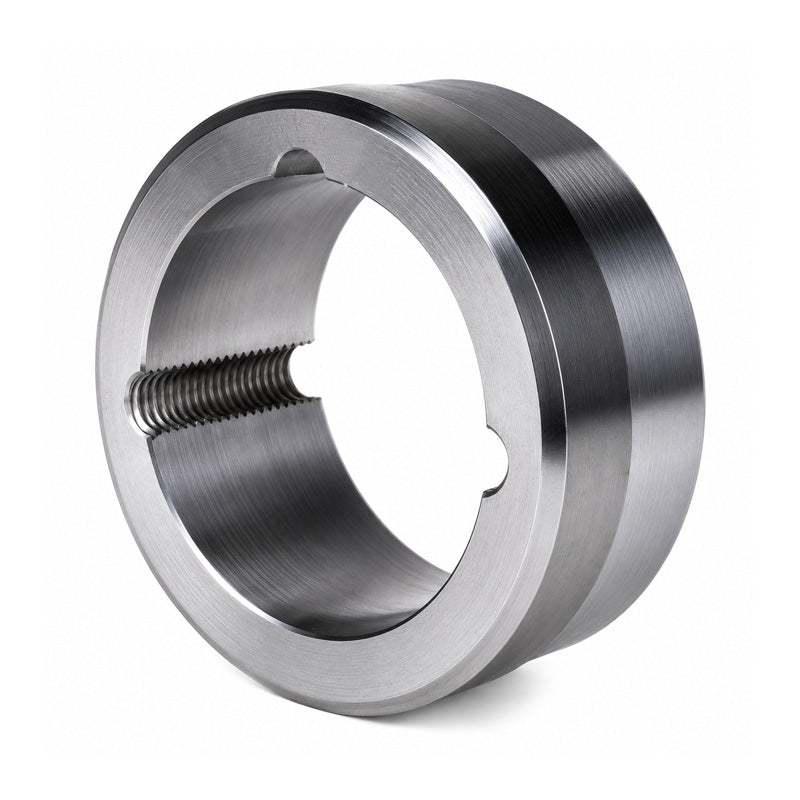

SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€113,64
ex VAT
Regular price
Sale price
€113,64
ex VAT
In stock
Price Break
10+
€101,14
19+
€95,46
29+
€94,32
39+
€93,18
49+
€92,05
74+
€90,91
99+
€85,23
199+
€84,09
249+
€82,96
499+
€81,82
999+
€79,55
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4030
- Outside Diameter:
- 200mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WHG40-1 |
|---|---|
| Bush Number | 4030 |
| A | 200mm |
| B | 190mm |
| C | 189mm |
| D | 76mm |
| E | 32mm |
| F | 30mm |
| F1 | 25mm |
| X | 25mm |
