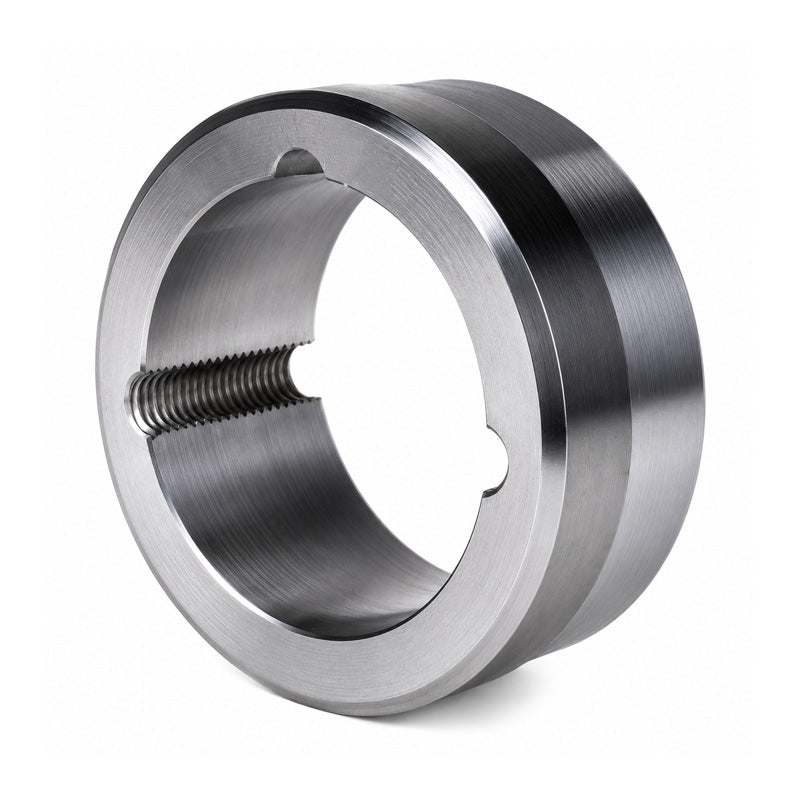

SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€149,67
ex VAT
Regular price
Sale price
€149,67
ex VAT
In stock
Price Break
10+
€133,21
19+
€125,72
29+
€124,23
39+
€122,73
49+
€121,23
74+
€119,74
99+
€112,25
199+
€110,76
249+
€109,26
499+
€107,76
999+
€104,77
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 200mm
- Width:
- 101mm
Technical
Technical
| Hub Reference | WHG40-2 |
|---|---|
| Bush Number | 4040 |
| A | 200mm |
| B | 190mm |
| C | 189.5mm |
| D | 101mm |
| E | 32mm |
| F | 30mm |
| F1 | 34mm |
| X | 34mm |
