SKU: WHG50-2-SKF

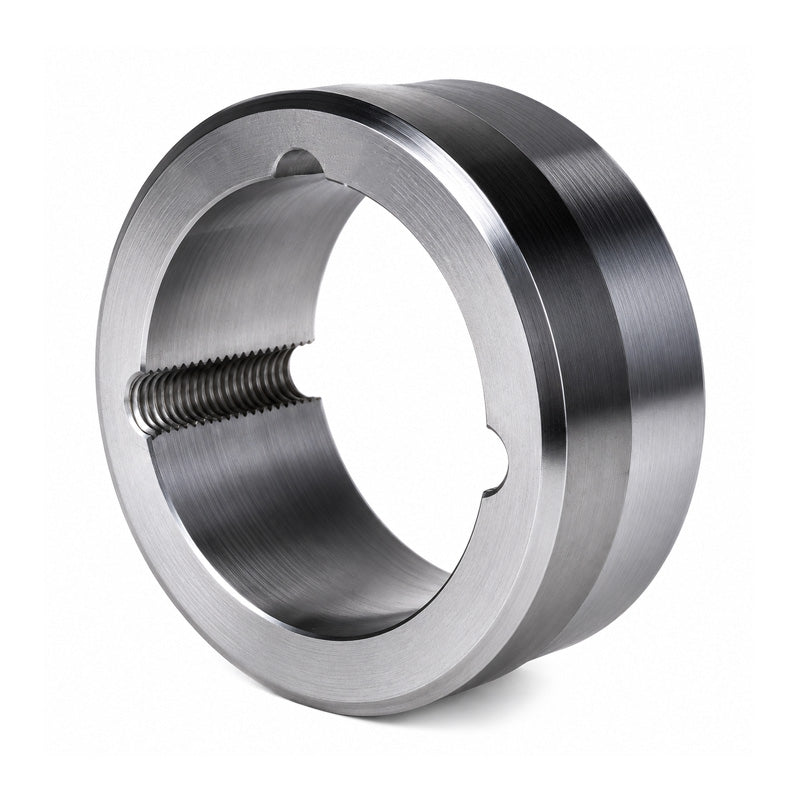

SKF WHG50-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG50-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€212,93
ex VAT
Regular price
Sale price
€212,93
ex VAT
In stock
Price Break
10+
€189,51
19+
€178,86
29+
€176,73
39+
€174,60
49+
€172,47
74+
€170,34
99+
€159,70
199+
€157,57
249+
€155,44
499+
€153,31
999+
€149,05
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 5050
- Outside Diameter:
- 230mm
- Width:
- 127mm
Technical
Technical
| Hub Reference | WHG50-2 |
|---|---|
| Bush Number | 5050 |
| A | 230mm |
| B | 220mm |
| C | 219.5mm |
| D | 127mm |
| E | 40mm |
| F | 35mm |
| F1 | 42mm |
| X | 42mm |
