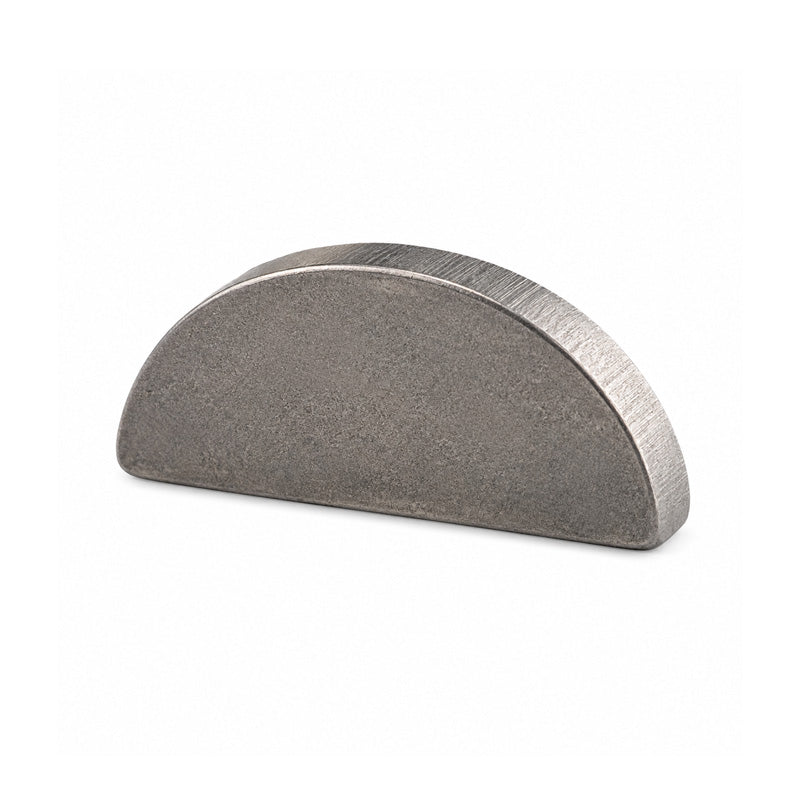

Imperial Carbon Steel BS46 Woodruff Key 1/8x1/2x3/64 inch

Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:

Simply Key Steel - High Quality

Outside Diameter:

12.7mm = 0.5 (1/2) inch

Width:

3.18mm = 0.125 (1/8) inch

Height:

Approx 0.2005 inch

Length:

Approx 0.486 inch

Material:

Carbon Steel
