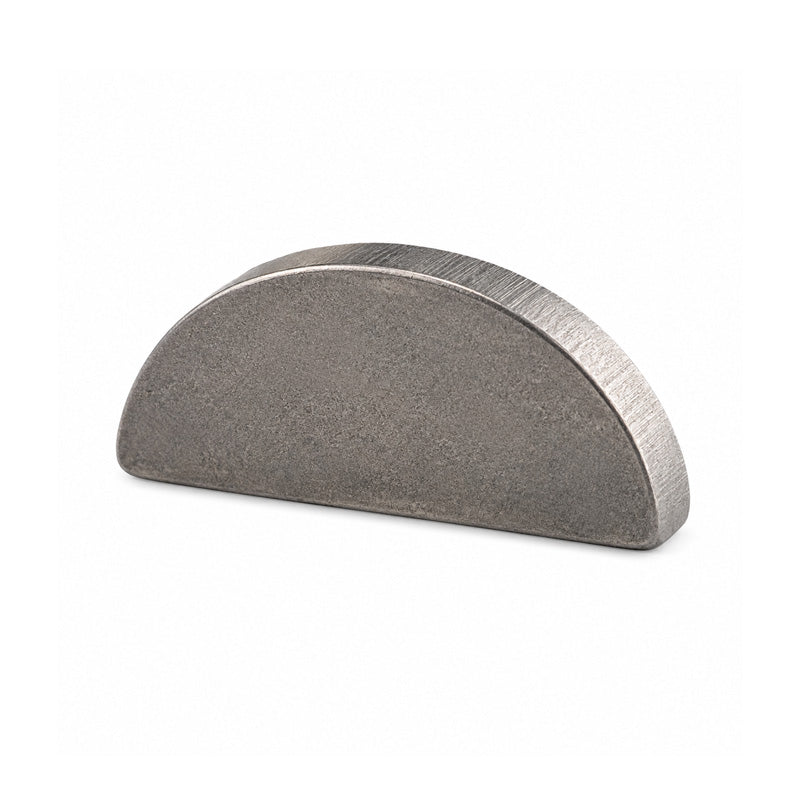

Imperial Stainless Steel A4-316 Woodruff Key 3/16x3/4x1/16 inch

Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation

Brand / Quality:

Simply Key Steel - High Quality

Outside Diameter:

19.05mm = 0.75 (3/4) inch

Width:

4.76mm = 0.187 (3/16) inch

Height:

Approx 0.3105 inch

Length:

Approx 0.735 inch

Material:

Stainless Steel
