SKU: WMG45-SKF

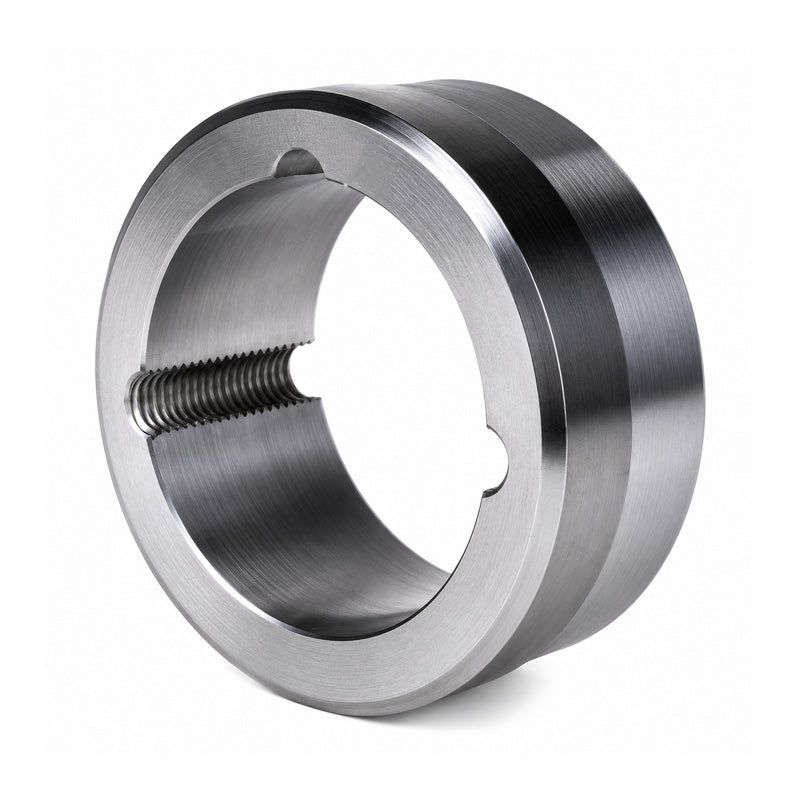

SKF WMG45 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG45 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€210,88
ex VAT
Regular price
Sale price
€210,88
ex VAT
In stock
Price Break
10+
€187,68
19+
€177,14
29+
€175,03
39+
€172,92
49+
€170,81
74+
€168,70
99+
€158,16
199+
€156,05
249+
€153,94
499+
€151,83
999+
€147,62
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4545
- Outside Diameter:
- 254mm
- Width:
- 114mm
Technical
Technical
| Hub Reference | WMG45 |
|---|---|
| Bush Number | 4545 |
| A | 254mm |
| B | 220mm |
| C | 213mm |
| D | 114mm |
| E | 38mm |
| F | 38mm |
| F1 | 38mm |
| X | 38mm |
