SKU: WS81209-NTN

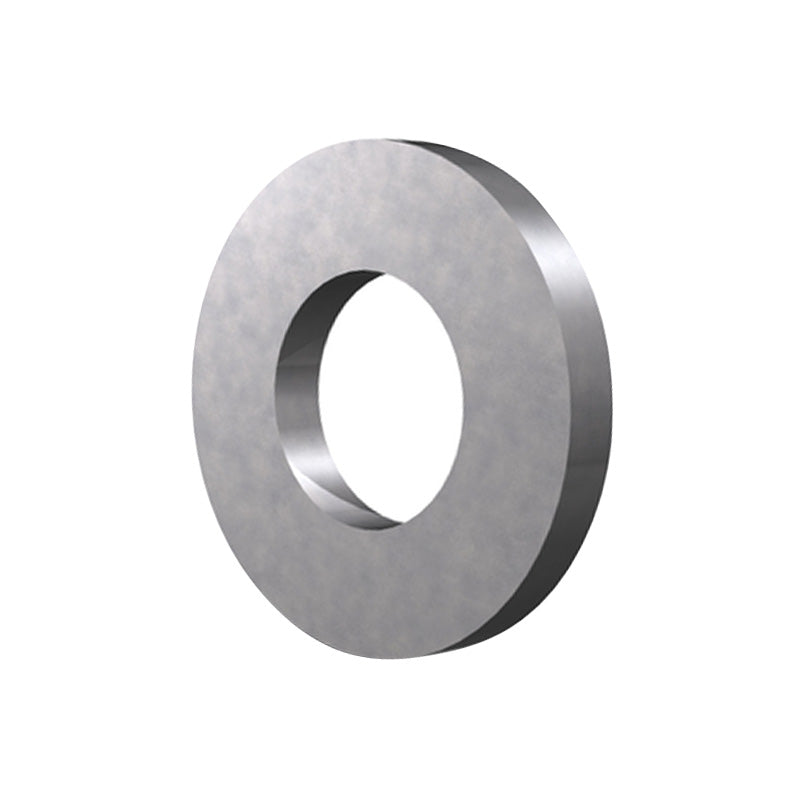

NTN WS81209 Thrust Washer 45x73x5.5mm - Allow 2-3 Days
NTN WS81209 Thrust Washer 45x73x5.5mm - Allow 2-3 Days
Regular price
€18,09
ex VAT
Regular price
Sale price
€18,09
ex VAT
In stock
Price Break
3+
€15,33
4+
€14,71
9+
€14,40
19+
€13,93
49+
€13,62
99+
€12,85
499+
€10,84
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
NTN Thrust Washers: Thrust Washers are engineered to deliver reliable axial load support in demanding mechanical systems. Manufactured from high-grade, heat-treated steel, these washers provide a durable, stable raceway surface for needle roller and cylindrical thrust bearings. Their precision-ground finish ensures low friction, smooth rotation, and extended bearing life.
Ideal for automotive, industrial, agricultural, and general machinery applications, NTN Thrust Washers are designed for easy integration and consistent performance even under heavy loads and high speeds. Benefits: High strength steel construction, low friction, available in a wide range of sizes |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 73mm
- Width:
- 5.5mm
Technical
Technical
| d - Inside diameter | 45mm |
|---|---|
| d1 - Outside diameter | 73mm |
| B - Width | 5.5mm |
| rs - Minimum fillet radius | 1mm |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
